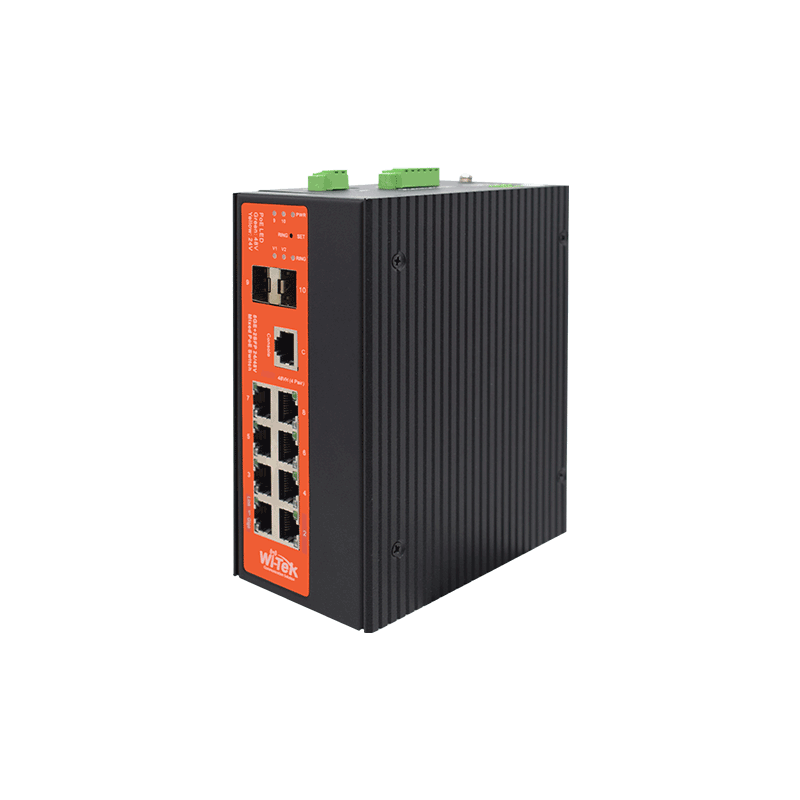

WI-PMS310GF- Alien-I

● 8 10/100/1000Mbps RJ45 PoE Ports
● 2 100/1000Mbps SFP Slots
● Industrial layer 2 managed PoE switch
● Auto detect 48V 802.3af/at or 24v passive PoE
● DC Input 18-57V, works with solar power
● -40℃~80℃ working temperature

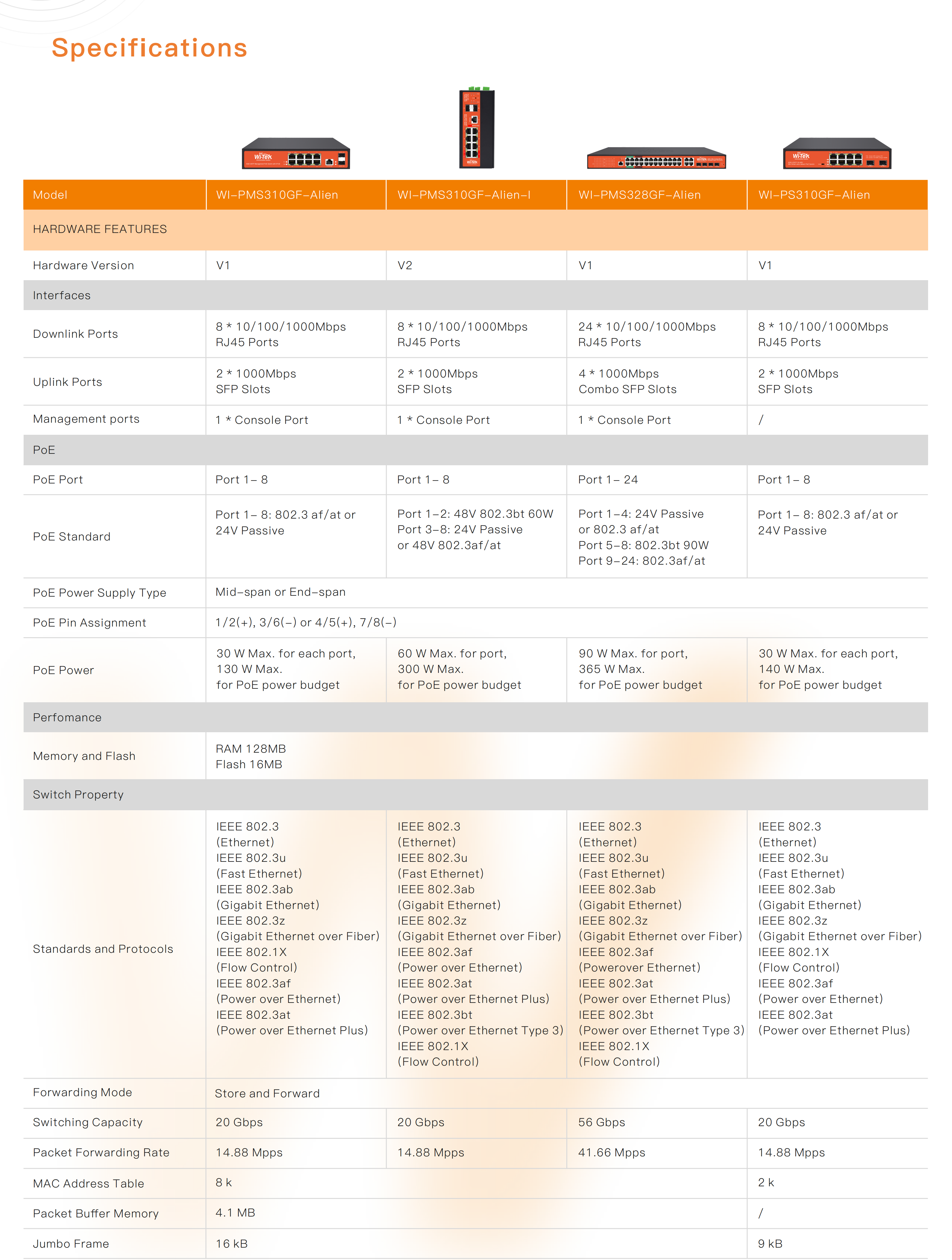

HARDWARE FEATURES

WI-PMS310GF-Alien-I

Hardware Version

V2

L2 Managed

Yes

Interface

8 10/100/1000Mbps RJ45 Ports

2 1000Mbps SFP Slots

PoE Port

Port 1-2: 48V 802.3bt 60W

Port 3-8: 24V Passive

 or 48V 802.3af/at

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

1000BASE-X: MMF, SMF 1000Base-L X:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

Fan Quantity

Fanless

Power Consumption

300W (max. with PoE device connected)

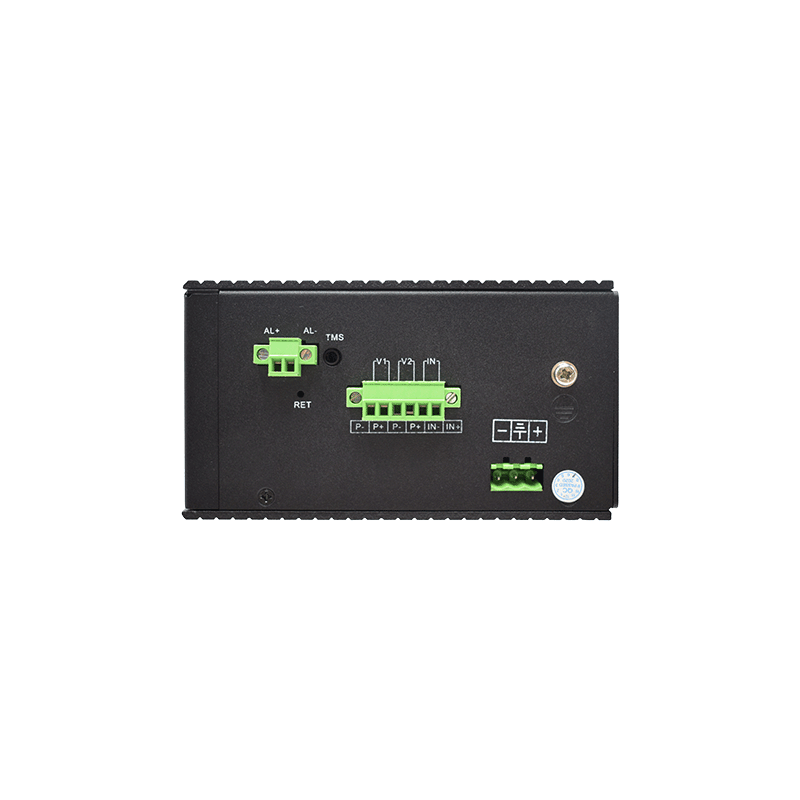

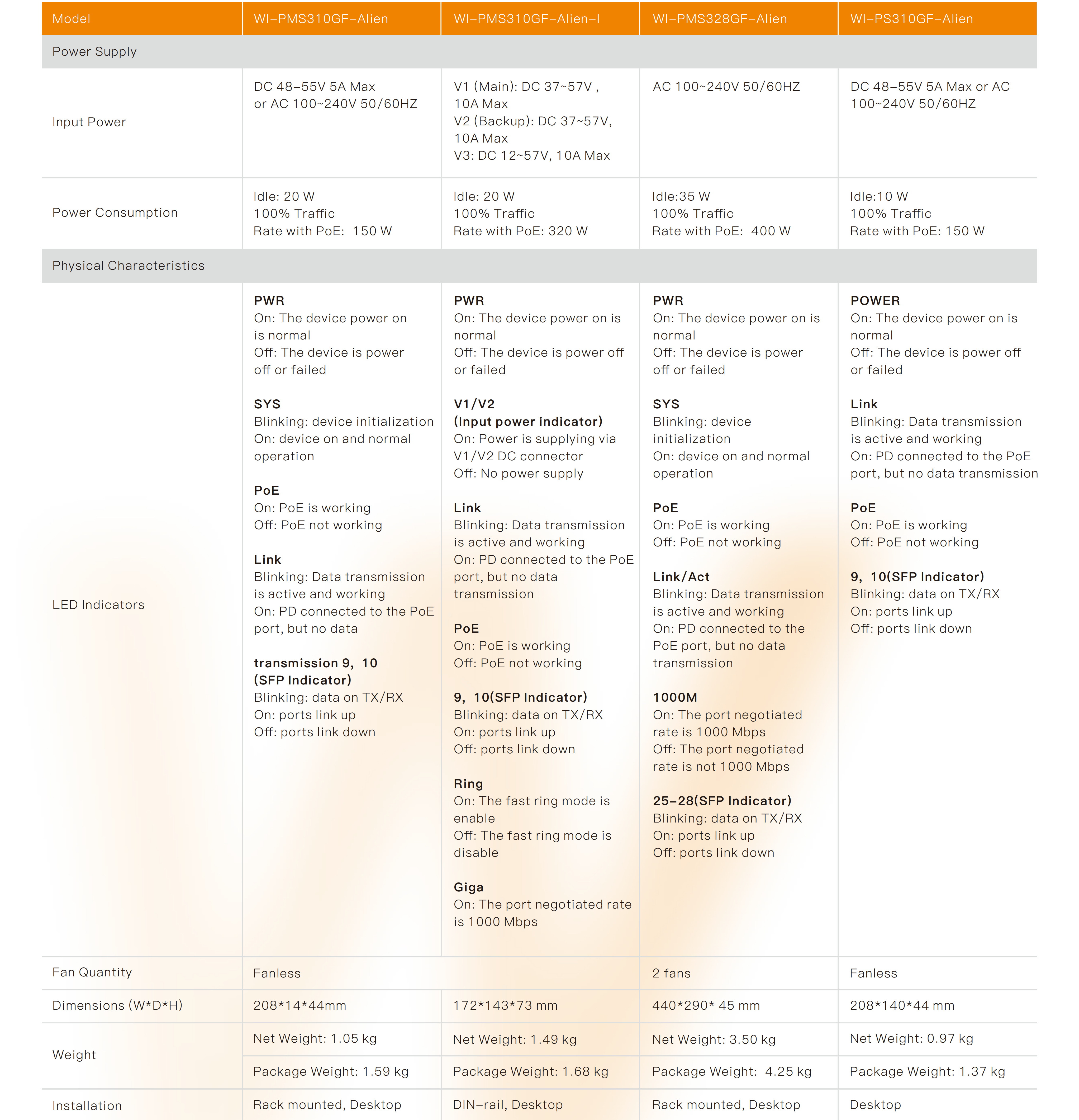

External Power Supply

DC1: 9-52V 10A Max

DC2: 37-57V 8A Max

DC3: 37-57V 8A Max

Exchange Capacity

20Gbps

Packet Forwarding Rate

18Mpps

Mac Address Table

8K

Packet Buffer Memory

4Mb

Jumbo Frame

10240 Bytes

Protection Level

6kV Lightning protection

8kV ESD Contact discharge

Transmission Method

Store-and-Forward

 Advanced Functions

Priority Function

Mac Address Auto-Learning And Auto-Aging

Store and forward

IEEE 802.3x  flow control for

Full-duplex Mode

Backpressure for Half-duplex Mode

OTHERS

Certification

CE, FCC, RoHS

Package Dimension

N/A

Switch Dimension

130×162×75 mm

Gross Weight

N/A

Net Weight

1.51kg

Package Contents

1× PoE Switch

1× Temperature Sensor

1× Screw Driver

1× Installation Guide

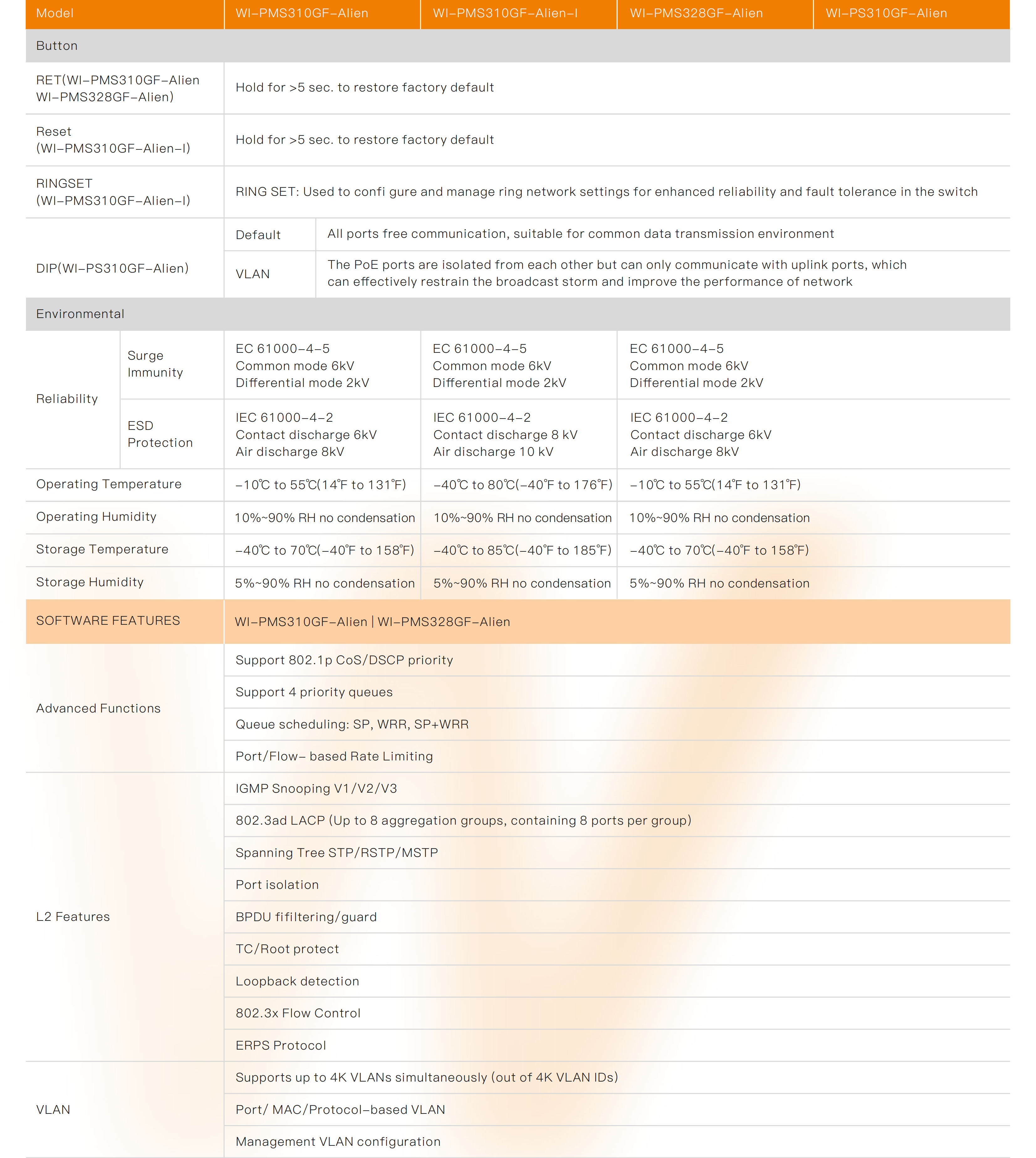

Working Environment

Working Temperature:

-40℃~80℃

Storage temperature :

-40℃~90℃

Working Humidity :

10%~90% RH

non-condensing

Storage Humidity:

5%~95% RH non-condensing

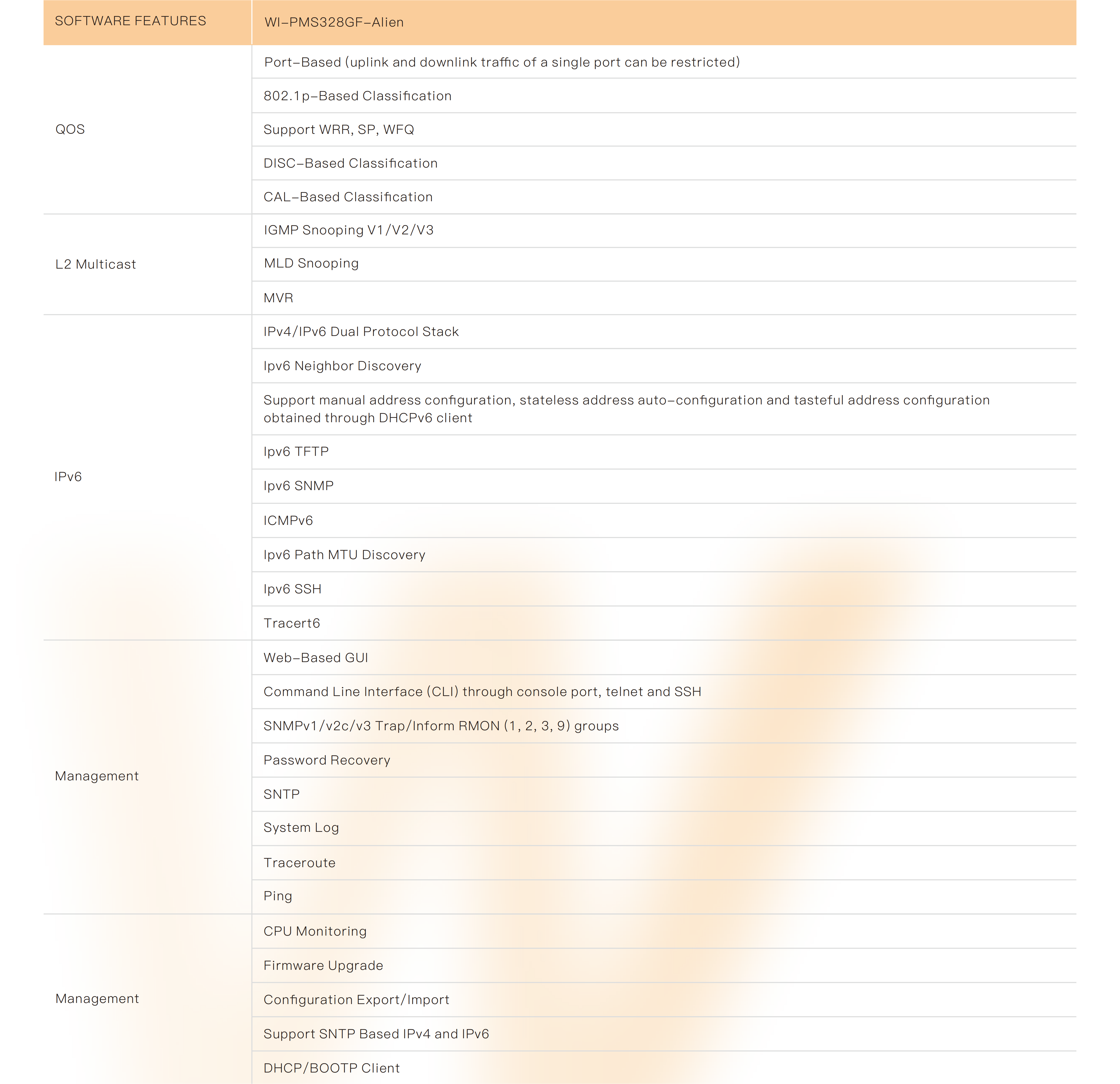

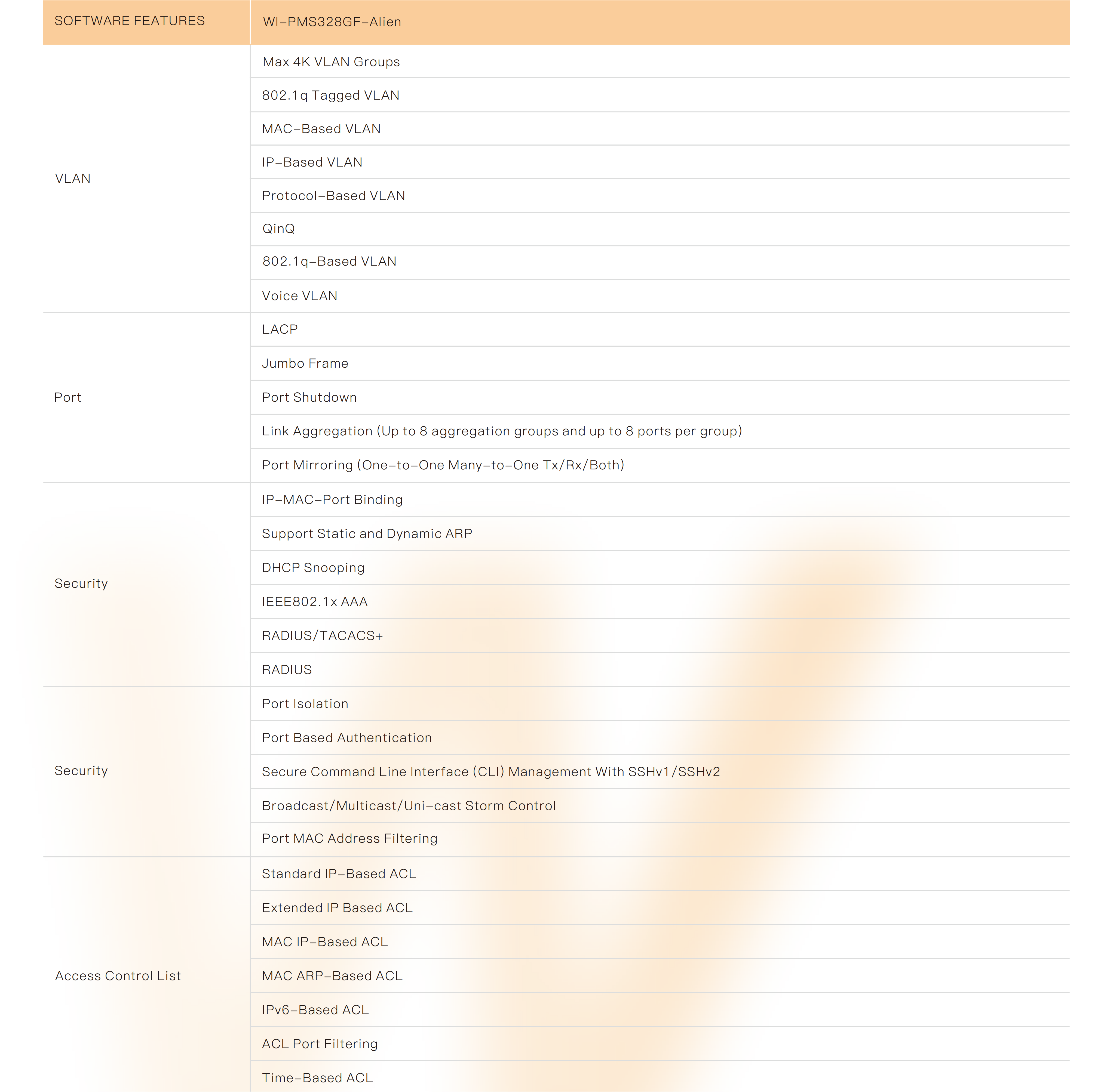

SOFTWARE FEATURES

Advanced Functions

Support 802.1p CoS/DSCP priority

Support 4 priority queues

Queue scheduling: SP, WRR, SP+WRR

Port/Flow- based Rate Limiting

L2 Features

IGMP Snooping V1/V2/V3

802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)

Spanning Tree STP/RSTP/MSTP

Port isolation

BPDU filtering/guard

TC/Root protect

Loop back detection

802.3x Flow Control

VLAN

Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)

Port/ MAC/Protocol-based VLAN

Management VLAN configuration

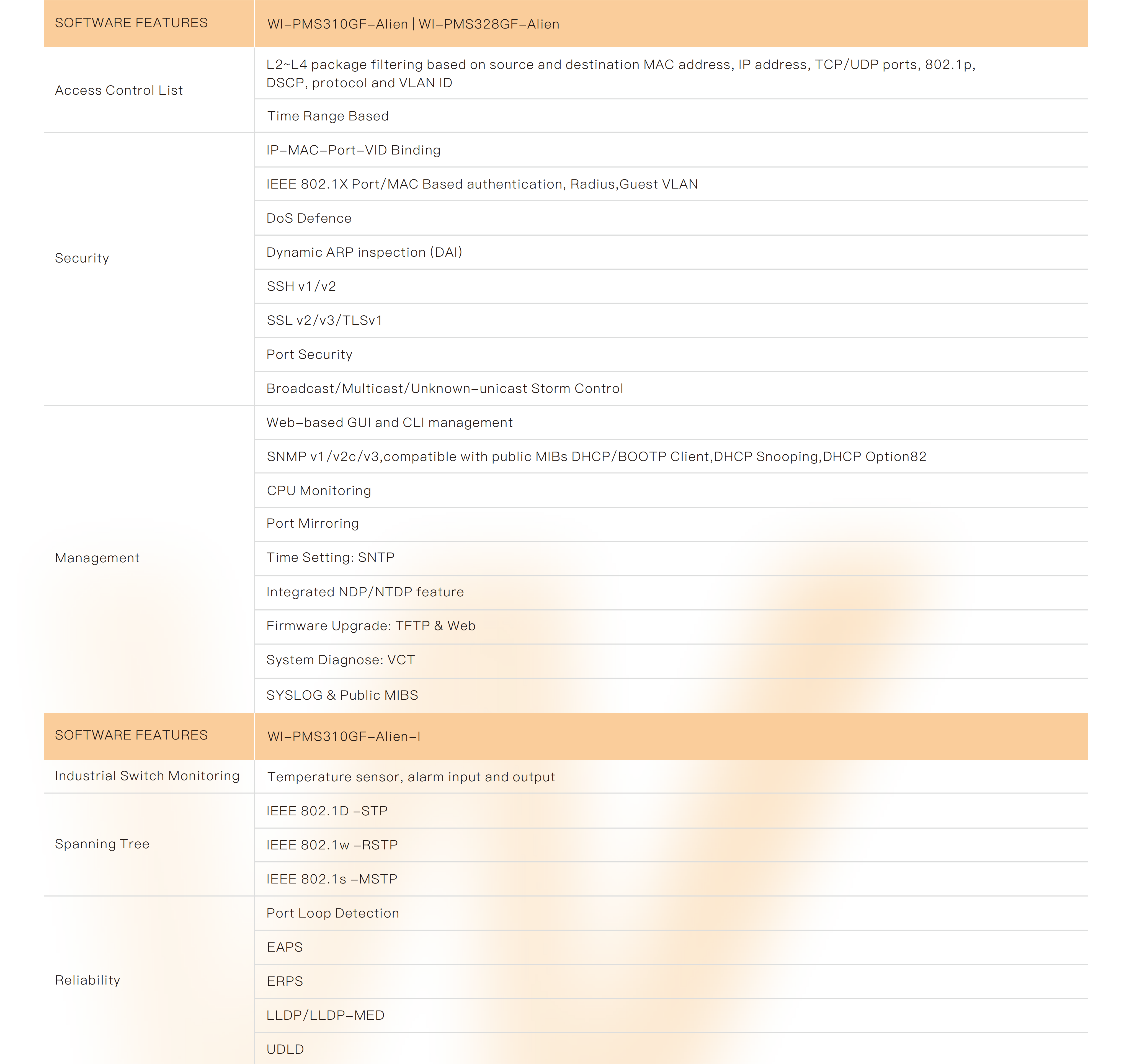

Access Control List

L2~L4 package filtering based on source and destination MAC address, IP address,
TCP/UDP ports, 802.1p, DSCP, protocol and VLAN IDTime Range Based

Security

IP-MAC-Port-VID Binding

IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN

DoS Defence

Dynamic ARP inspection (DAI)

SSH v1/v2

SSL v2/v3/TLSv1

Port Security

Broadcast/Multicast/Unknown-unicast Storm Control

Management

Web-based GUI and CLI management

SNMP v1/v2c/v3,compatible with public MIBs DHCP/BOOTP Client,DHCP Snooping,DHCP Option82

CPU Monitoring

Port Mirroring

Time Setting: SNTP

Integrated NDP/NTDP feature

Firmware Upgrade: TFTP & Web

System Diagnose: VCT

SYSLOG & Public MIBS
