WI-PS326GFH

● 24 1000Mbps RJ45 PoE Ports
● 2 1000Mbps SFP Slots

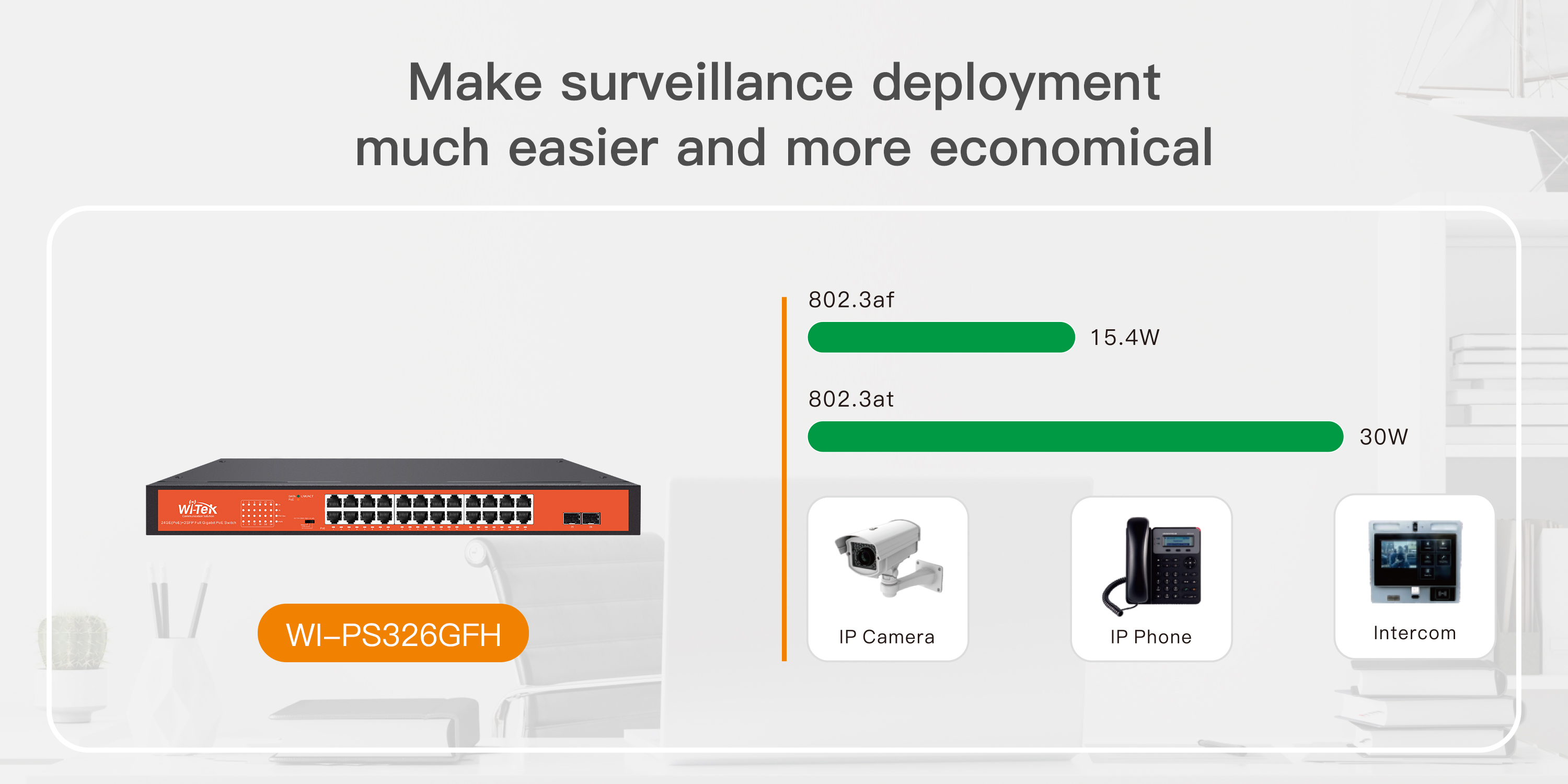

● Each port supports Supports IEEE 802.3af/at 30W PoE
● PoE power budget can be up to 200W

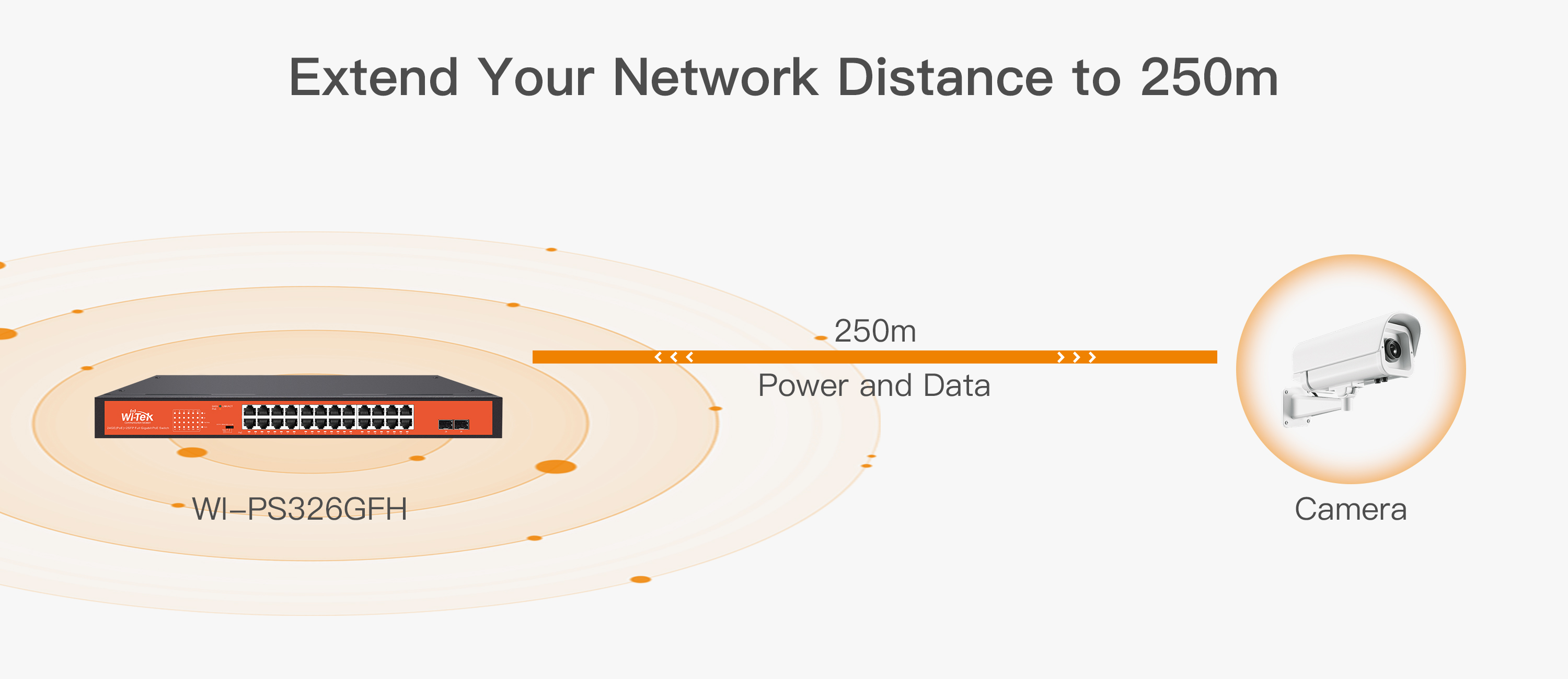

● CCTV Mode supports 250m long distance and port isolation function
● PoE watchdog detects, reboots unresponsive PoE-powered devices
● Plug and play with no configuration required

HARDWARE FEATURES

WI-PS326GFH

Hardware Version

V1

Interface

24 1000Mbps RJ45 PoE Ports

2 1000Mbps SFP Slots

Network Media

10Base-T: Pair 2 Category 3 (cat 3 ) and above UTP/ STP(≤100m)

100Base-TX: Pair 2 Category 5 (cat 5 ) and above UTP/ STP(≤100m)

1000BASE-TX: 6 Category and above UTP(≤150m)

Fan Quantity

2 x Fans

Power Supply

AC 100~240V 50/60HZ

PoE Standard

802.3 af/at compliant PoE

PoE Ports

Port 1- 24

PoE Power Budget

200W

Mac Address Table

8k

Packet Forwarding Rate

38.69Mpps

Jumbo Frame

10kB

Protection Level

6kV Lightning protection

6kV ESD Contact discharge

SOFTWARE FEATURES

Transmission Method

Store - And - Forward

LED Indicator

PoE/Link/Power

DIP Switch

Default/VLAN/CCTV

250m

Yes

Port VLAN

Yes

PoE WAtchdog

Yes

Advanced Functions

Mac Address Auto- Learning

Auto-Aging Store and forward

IEEE 802.3x flow control for Full-duplex Mode

Backpressure for Half-duplex Mode

OTHERS

Certification

CE , FCC , RoHS

Package Dimension

490×350×85mm

Switch Dimension

440×205×45mm

Gross Weight

4.11kg

Net Weight

3.36kg

Package Content

1 × PoE Switch

1 × Power Cord

1 × Rackmount Kit

1 × Quick Installation Guide

Environment

Operating Temperature: -10℃–55℃ (14℉–131℉)

Storage Temperature: -40℃–70 ℃ (-40℉–158℉)

Operating Humidity: 10– 90% RH non-condensing

Storage Humidity: 5– 90% RH non-condensing
