WI-CPE511H-KIT

● Adjustable transmission power from 0 to 20dBm
● Built-in 12dBi 2x2 dual-polarized directional MIMO antenna
● Support open frequency from 5150-5850MHz
● Long range wireless transmission up to 3km
● Wireless B/G/N speed up to 900Mbps
● Antenna Angle 60° degree
● Repeater/Basic Station/CPE/WISP operation modes
● Centralized Management System–Wi-Tek Cloud Platform
● 24V Passive PoE Adapter supports up to 100 meter
● Quick paired mode

Model

WI-CPE511H-KIT

Hardware version

V1

HARDWARE FEATURES

Interface

(2)10/100M Base-T LAN Ethernet ports

Signal Rate

900 Mbps at 5GHz

Operating Band

802.11a/n: 5.150~5.850GHz

Antenna Type

Built-in 12dBi Directional Antenna

Power Supply

24V Passive PoE Adapter

Power Consumption

≤7W

Transmit Power

≤20dBm (200mW)

Recommend Distance

3km

Antenna Angle

60°

External buttons

reset button (long press for 5 seconds

to restore the factory default configuration)

Protection

6kV ESD Protection

2kV Lightning Protection

Waterproof

IP65

Dimensions

168mm x 88mm x 47.6mm

Environment

Working Temp: -33~ 65°C

Storage Temp: -50 ~80°C

Working Humidity: 5%~95% (non-condensing)

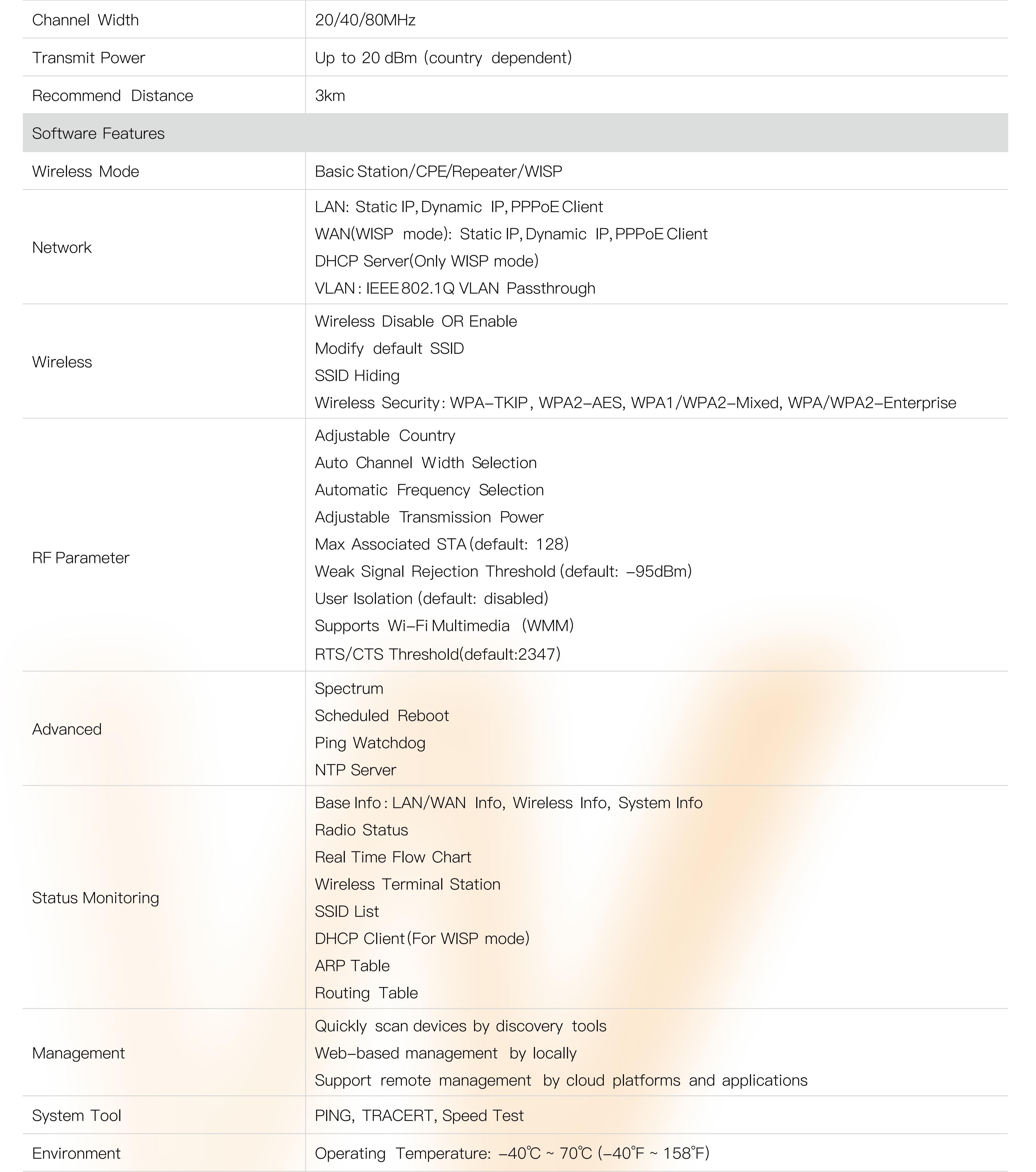

SOFTWARE FEATURES

Operating Modes

Base Station / CPE / Repeater / WISP Mode

Wireless Security

WPA-TKIP / WPA2-AES, WPA/WPA2-Enterprise

Wireless Parameter

Selectable Channel Width: 20/40MHz

Automatic Channel Selection

Tx Power Control

System Tools

Speed Test, Ping, Traceroute

Management

Support local management with web

Support remote management with Wi-Tek Cloud platform
