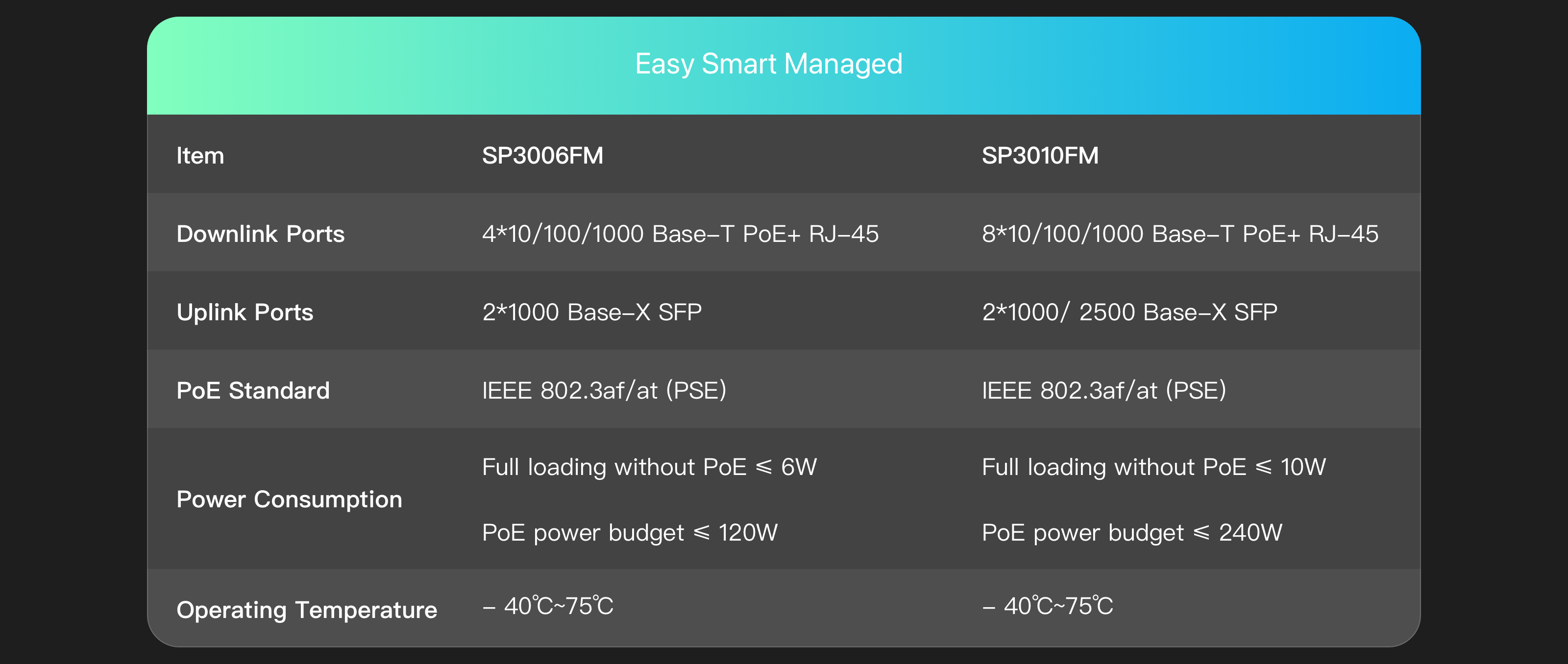

● Easy smart managed PoE switch
● 4*10/100/1000 Base-T PoE+ RJ-45 pors and 2*1000 Base-X SFP slot
● Complies with IEEE 802.3af/at 30W PoE standard
● Support easy smart managed function, such as VLAN, port mirroring, STP, RSTP, IGMP, QoS, LLDP, 802.1X, fiber transceiver DDM, PoE management, G.8032 ● ERPS protocol, IPV6 management
● - 40℃~75℃ operating temperature
● 6kV surge immunity for Ethernet ports

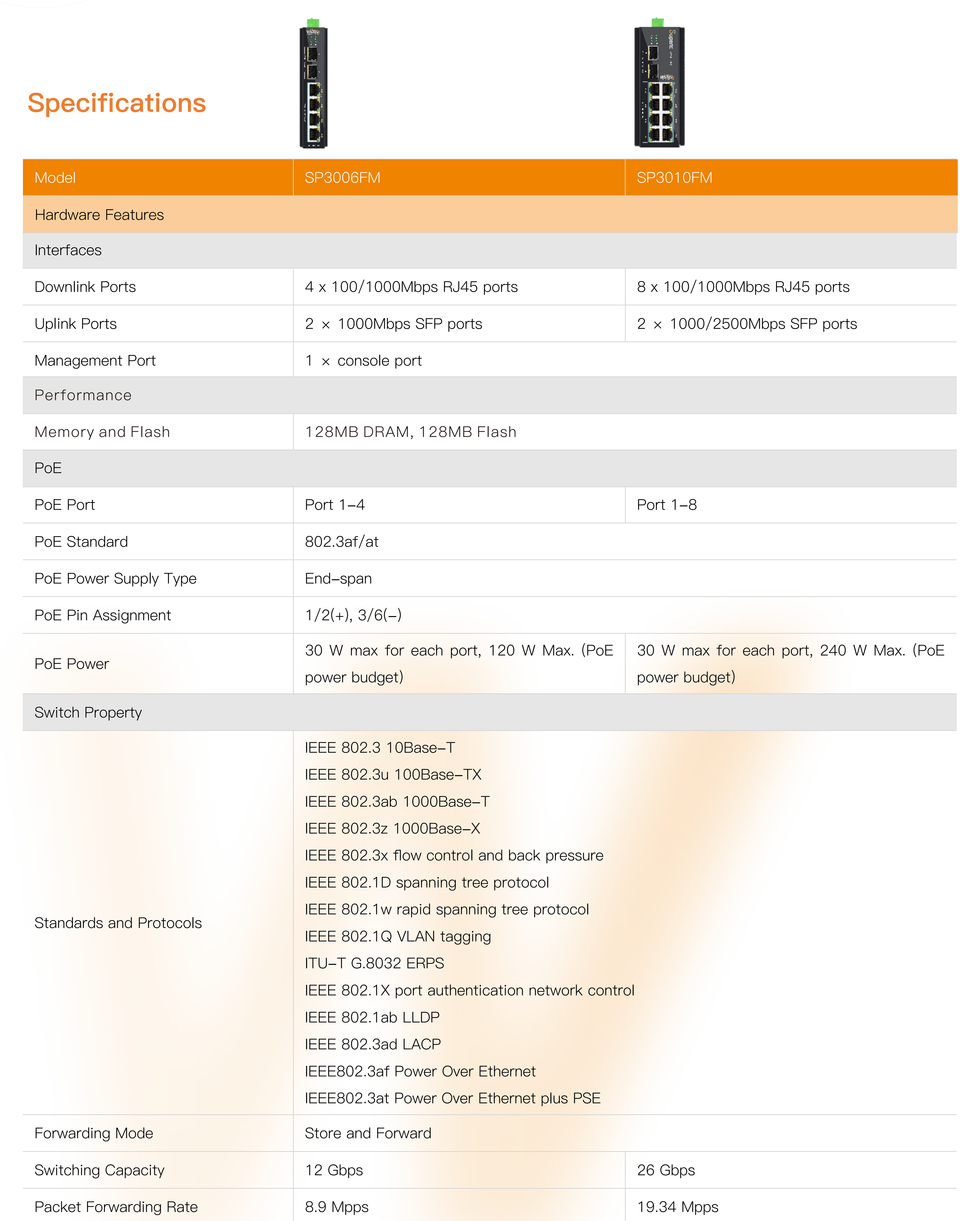

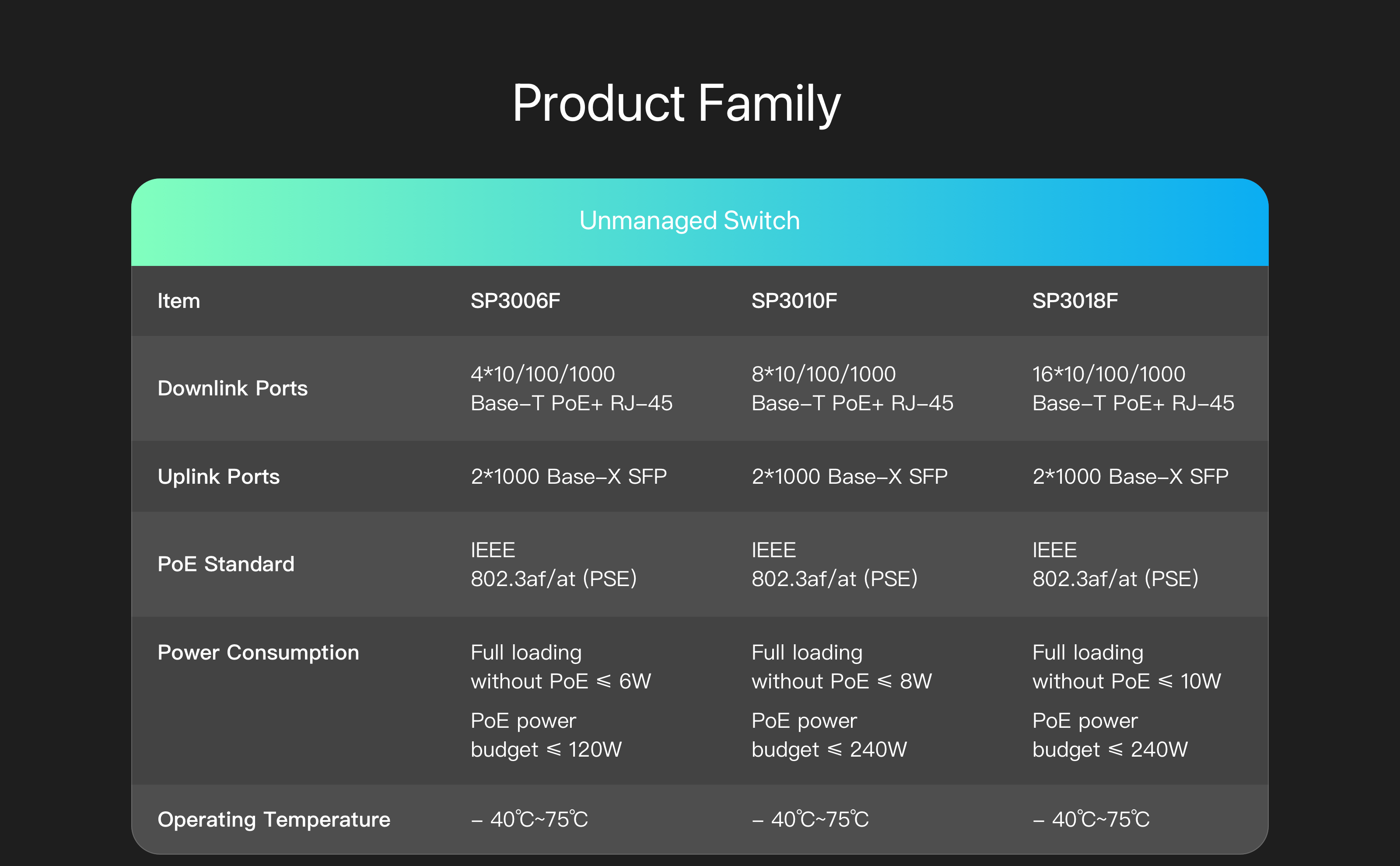

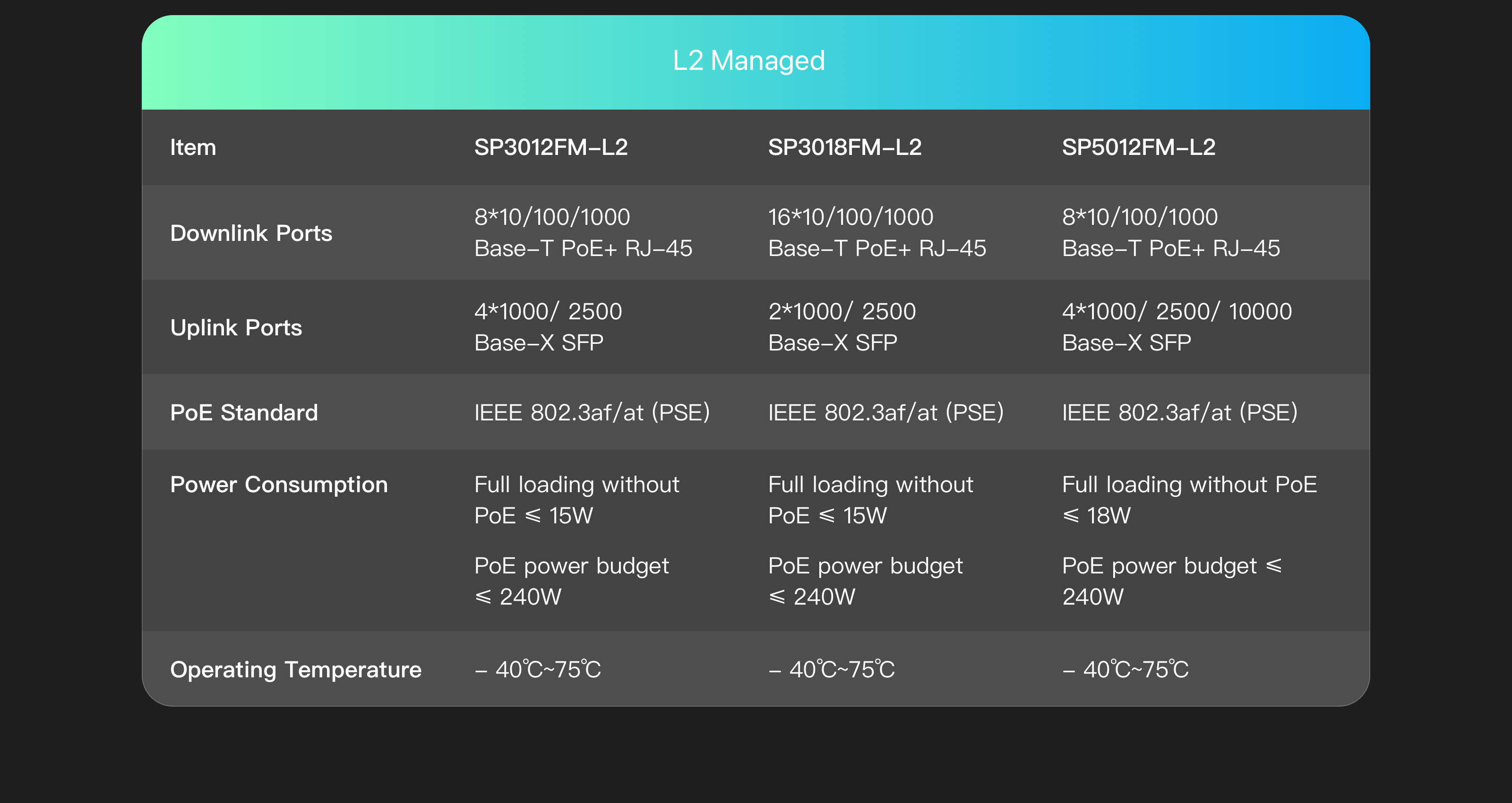

Downlink Ports

 4*10/100/1000 Base-T PoE+ RJ-45(Auto-MDI/MDI-X)

Uplink Ports

 2*1000 Base-X SFP

Management port

 1*RJ45 Console


PoE Standard

 IEEE 802.3af/at (PSE)

PoE Power Supply Type


PoE Pin Assignment


PoE Power Output

 46~55V DC

PoE Power

 30W max for each port, 120W max

Switch Property


 IEEE 802.3 10Base-T

 IEEE 802.3u 100Base-TX

 IEEE 802.3ab 1000Base-T

 IEEE 802.3z 1000Base-X

 IEEE 802.3x flow control and back pressure

 IEEE 802.1D spanning tree protocol

 IEEE 802.1w rapid spanning tree protocol

 IEEE 802.1Q VLAN tagging

 ITU-T G.8032 ERPS

 IEEE 802.1X port authentication network control

 IEEE 802.1ab LLDP

 IEEE 802.3ad LACP

 IEEE802.3af Power Over Ethernet

 IEEE802.3at Power Over Ethernet plus PSE

Forwarding Modes

 Store and Forward

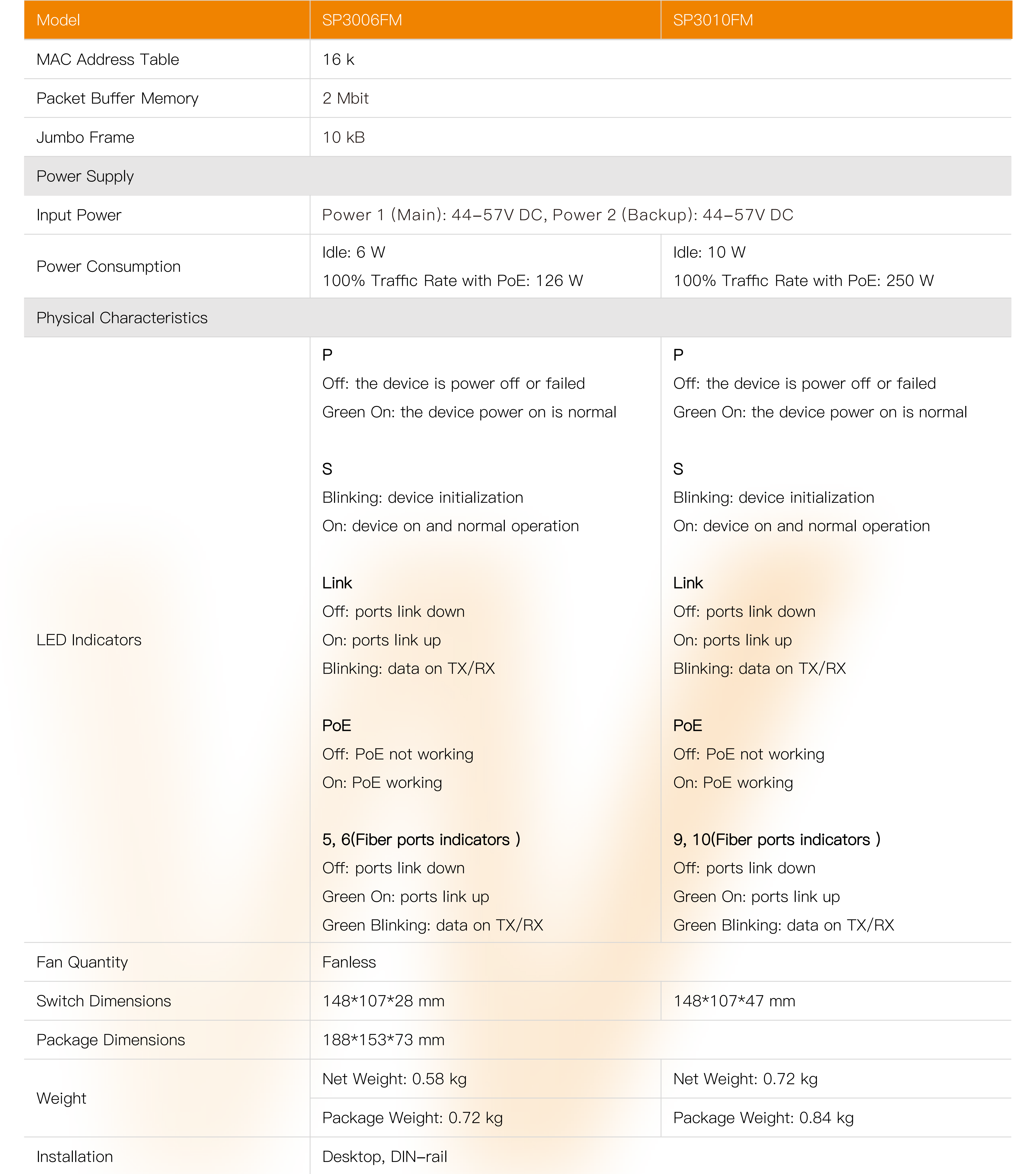

Packet Buffer


MAC Table


Switching Capacity


Packet Forwarding Rate


Jumbo Frame


Power Supply

Input Voltage

 Power 1 (Main): 44~57V DC, Power 2 (Backup): 44~57V DC

Power Consumption

 Full loading without PoE ≤ 6W PoE power budget ≤ 120W


 Removable 4-pin terminal block

Reverse polarity protection


Over-voltage protection


Over-current protection

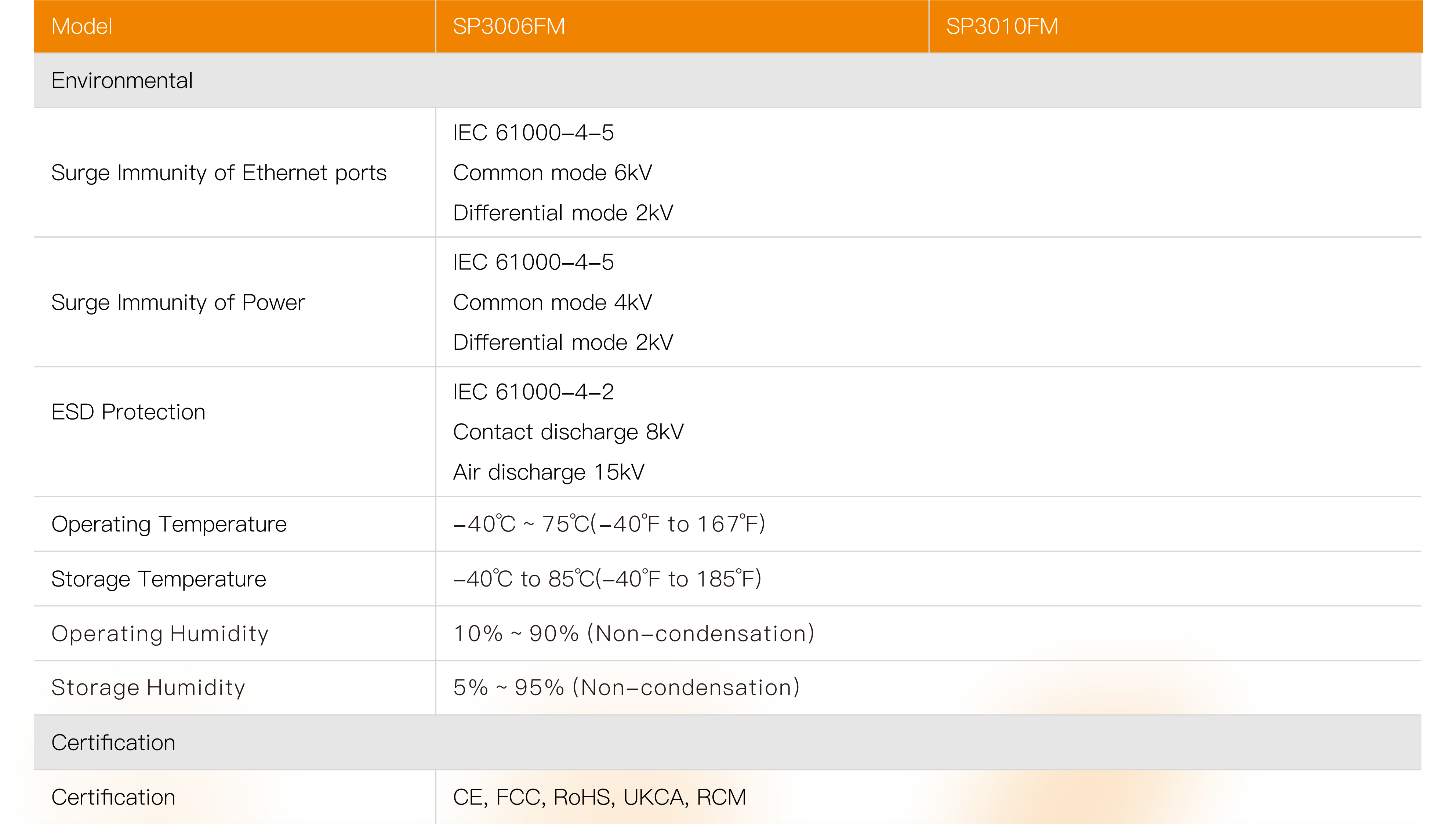

Environmental Reliability

Industrial Standard

 Surge protection of power: IEC 61000-4-5  Level 3 (4kV/2kV)(8/20us)

 Surge protection of Ethernet ports: IEC 61000-4-5  6kV/2kV (10/700us)

 DIP: IEC 61000-4-11  Level 310V

 ESD: IEC 61000-4-2  Level 48kV/15kV

 Shock: IEC 60068-2-27

 Free fall: IEC 60068-2-32

 Vibration: IEC 60068-2-6

Operating Temperature


Storage Temperature


Operating Humidity

 5%~95% (Non-condensation)

LED Indicators

P (Power indicator)

 Off: the device is power off or failed

 On: the device power on is normal

S (System status indicator)

 Blinking: device initialization

 On: device on and normal operation

Copper ports

 1-4 Green indicators

 Off: ports link down

 On: ports link up Blinking: data on TX/RX

 1-4 Yellow indicators

 Off: PoE not working

 On: PoE working

Fiber ports

 5-6 Fiber ports indicators

 Off: ports link down

 On: ports link up

 Blinking: data on TX/RX

Dimensions (W*D*H)


Net Weight







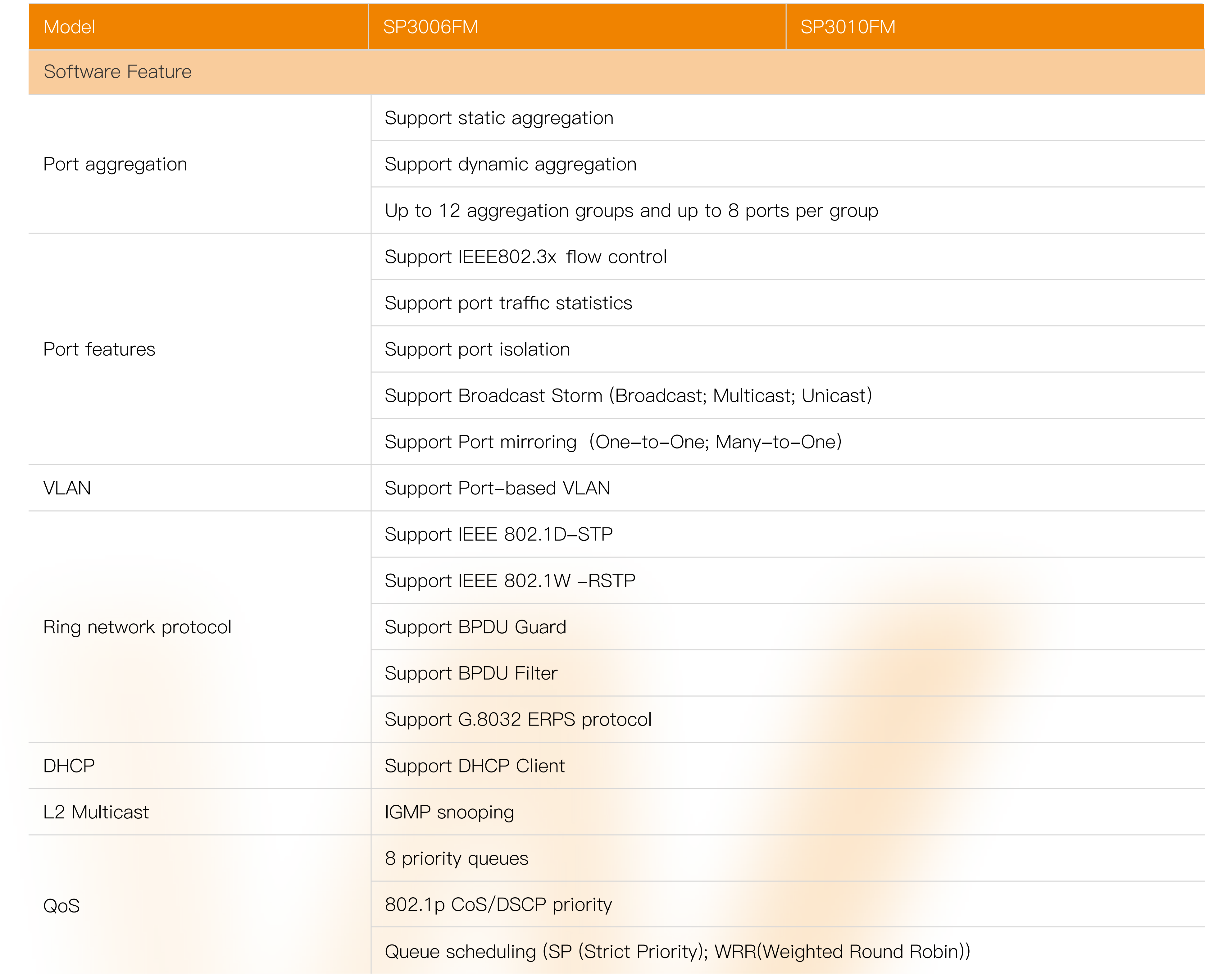

Software Feature

Port aggregation

 Support 1GE port aggregation

 Support 2.5GE aggregation

 Support static aggregation

 Support dynamic aggregation

Port features

 Support IEEE802.3x flow control

 Support port traffic statistics

 Support port isolation

 Support network storm suppression based on port bandwidth percentage


 Support access mode

 Support trunk mode

 Support hybrid mode

VLAN Classification

 Mac Based VLAN

 IP Based VLAN

 Protocol Based VLAN


 Port-based QinQ

 VLAN-based QinQ

 Flow-based QinQ

Port mirroring

 Many to one port mirroring

Ring network protocol

 Support STP, RSTP, MSTP

 Support G.8032 ERPS protocol, single ring, sub Ring and associated sub ring  Recovery time ≤20ms


 Support DHCP Client

 Support DHCP Snooping


 IGMP V1, V2, V3

 IGMP snooping


 IP Standard ACL

 MAC extend ACL

 IP extend ACL


 Support QoS Class, Remarking

 Support SP, WRR queue scheduling Ingress Port-based Rate-limit Egress

 Support Policy-based QoS


 Support Dot1x, port authentication, MAC authentication, RADIUS service

 Support port-security

 Support IP Source Guard, IP/Port/MAC binding

 Support ARP-check and ARP packet filtering for illegal users

 Support port isolation

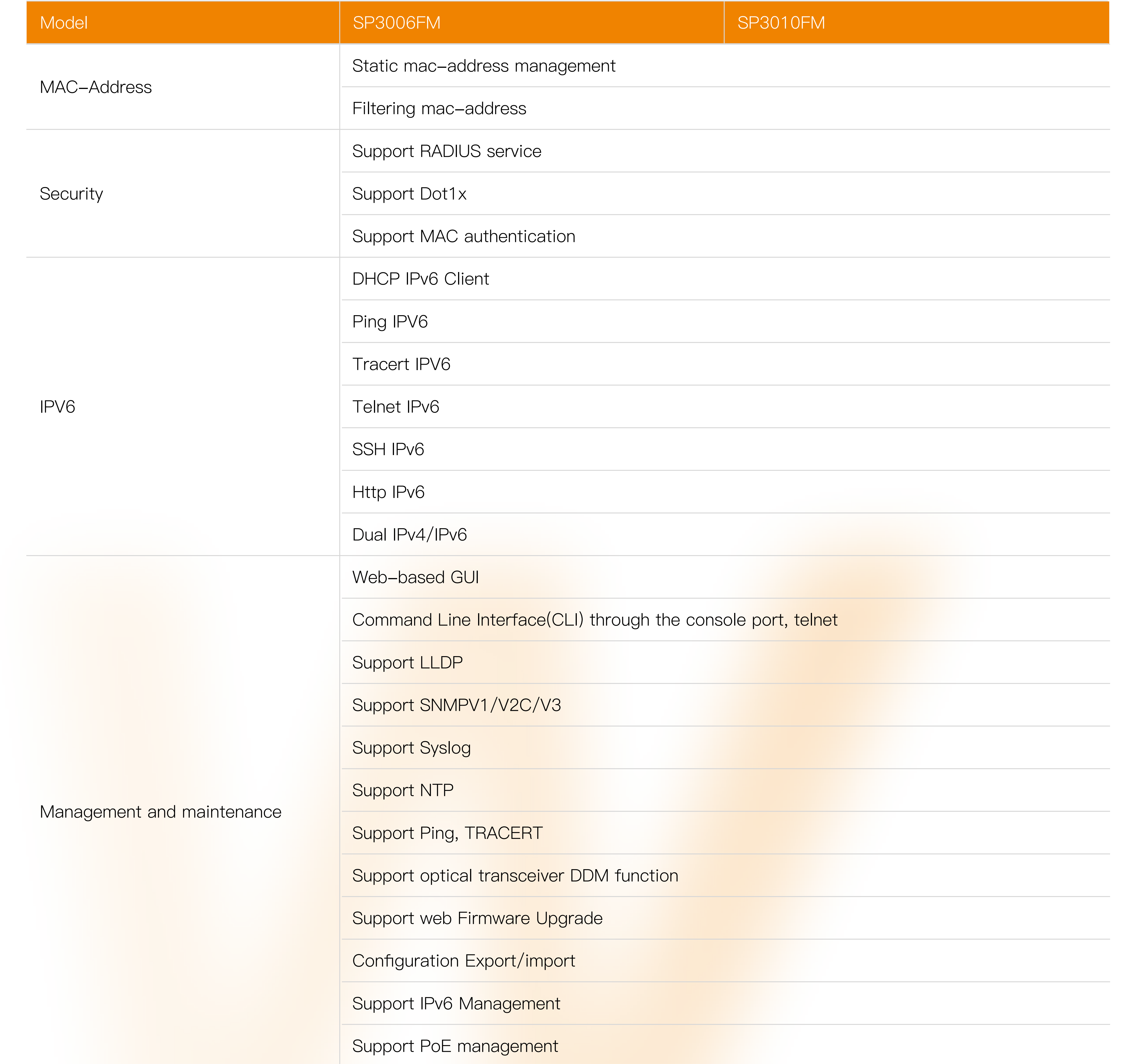

Management and maintenance

 Support LLDP

 Support user management and login authentication

 Support SNMPV1/V2C/V3

 Support web management, HTTP1.1, HTTPS

 Support Syslog and alarm grading

 Support RMON(Remote Monitoring) alarm

 Support NTP

 Support temperature monitoring

 Support Ping, TRACERT

 Support optical transceiver DDM function

 Support TFTP Client

 Support Telnet Server

 Support SSH Server

 Support IPv6 management

 Support PoE management

 Support TFTP, web upgrading
