WI-AX1800M(V2)

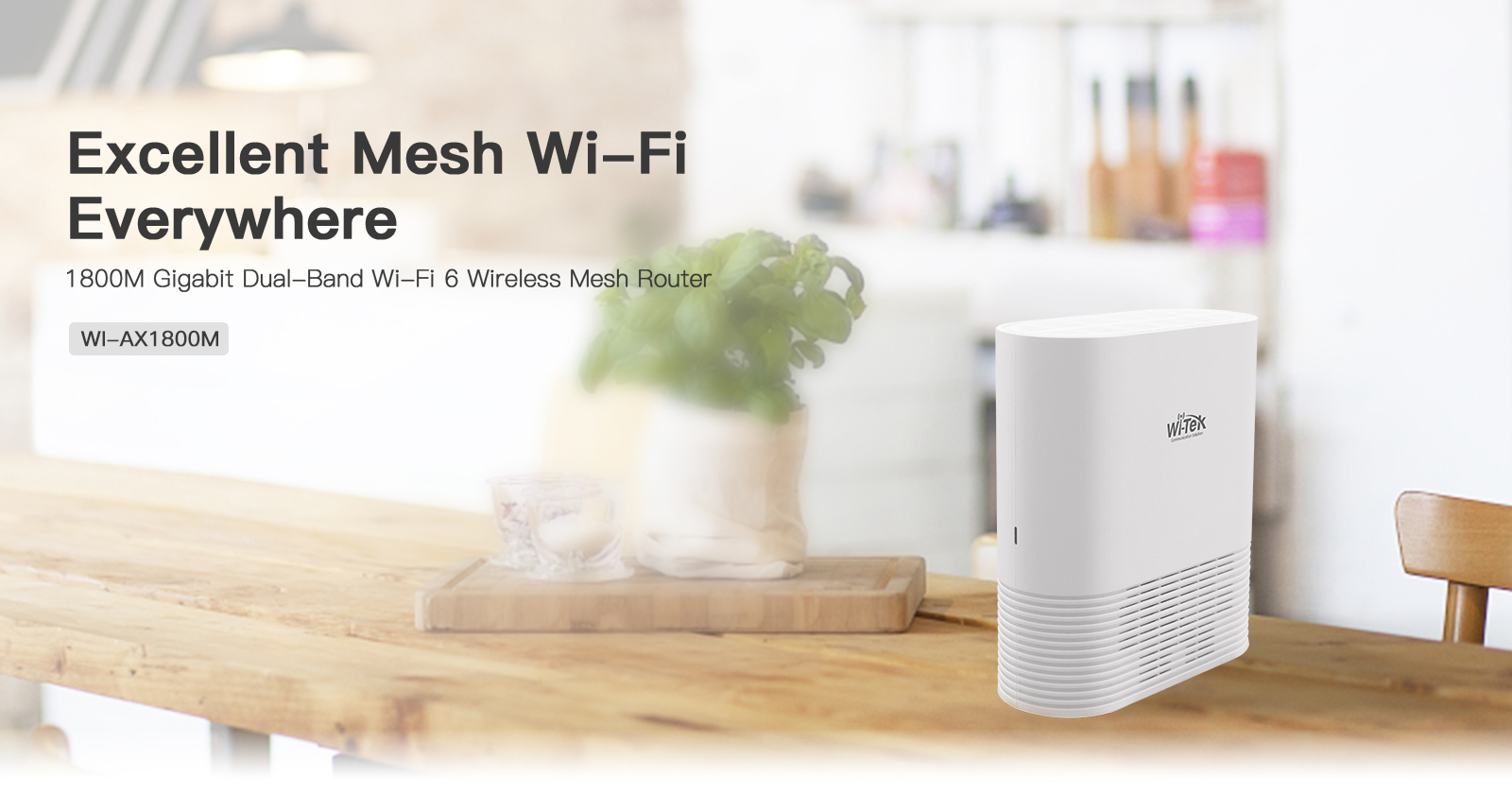

1800Mbps Wireless Mesh Router

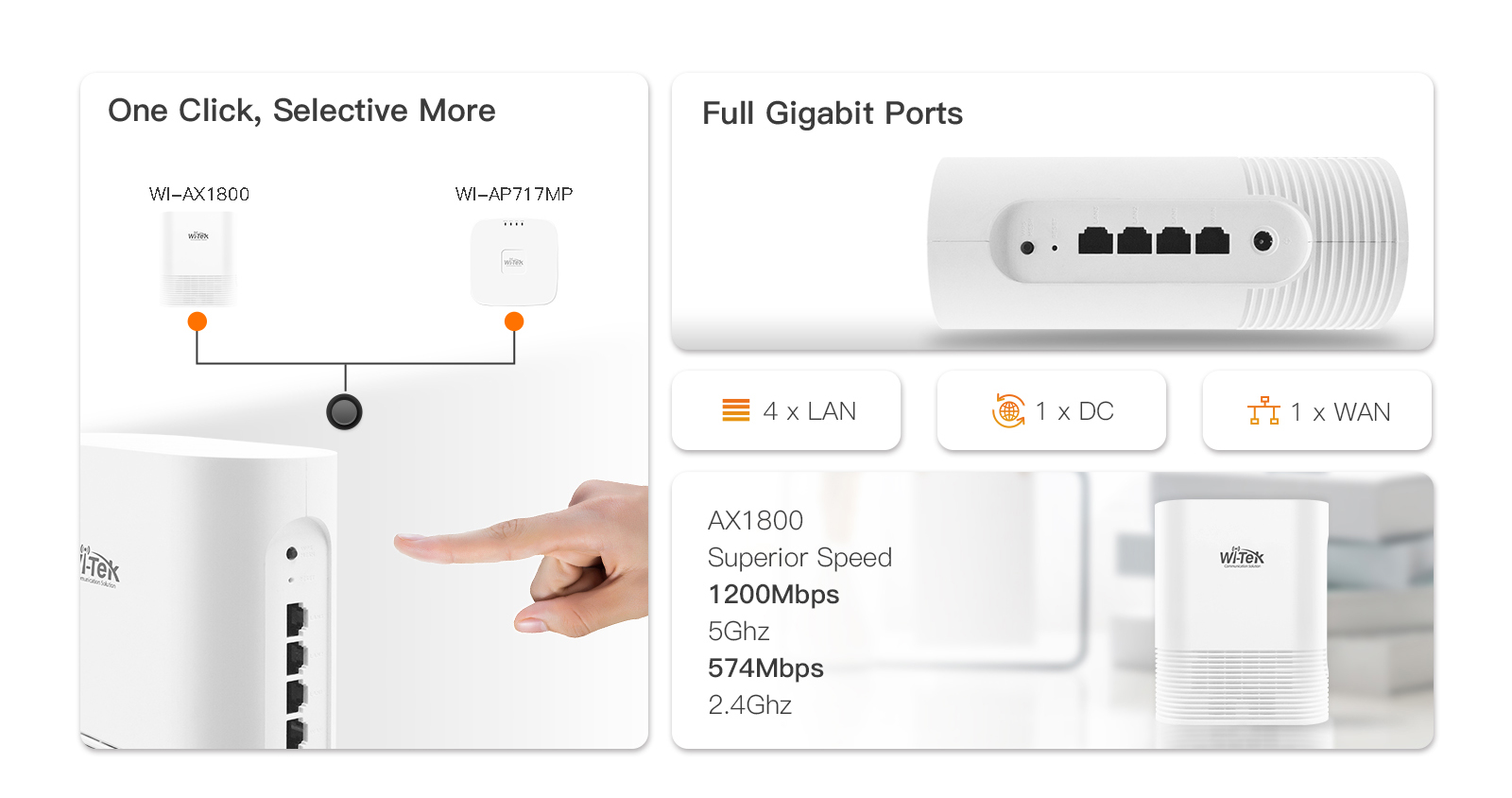

● 4 Gigabit Ethernet ports
● 574Mbps at 2.4GHz + 1201Mbps at 5GHz
● Support fast roaming technology
● Connect over 100 devices
● Support cloud management
Model |
WI-AX1800M |
Version |
V2 |
Wireless Standards |
IEEE 802.11ax/ac wave2/wave1/n/b/g/a |
Operating Bands |
2.4GHz & 5GHz |
Spatial Streams |
2.4GHz: 2x2 MIMO 5GHz: 2x2 MIMO |
Antenna |
2.4GHz: 5dBi ; 5GHz: 5dBi |
Signal Rate |
Up to 574Mbps at 2.4GHz |
Up to 1201Mbps at 5GHz |
|
Power Supply |
DC 12V/1A |
Power Consumption |
<12W |
Maximum Transmit Power |
<20dbm |
Receiver Sensitivity |
2.4GHz: |
802.11b:-90dBm@11M; |
|
802.11g: -78dBm@54M; |
|
802.11n HT20: -76dBm@MCS7; |
|
802.11n HT40: -72dBm@MCS7; |
|
802.11ax HESU40: -62dBm@MCS11; |
|
5.8GHz: |
|
802.11a : -78dBm@54M; |
|
802.11n VHT40: -65dBm@MCS9; |
|
802.11ac VHT80: -62dBm@MCS9; |
|
802.11ax HESU80: -58dBm@MCS11; |
|
External Buttons |
Reset button (long press for 8 seconds to restore |
Dimensions |
145mm * 65mm * 166mm |
Environment |
Operating Temperature: -40°C~55°C |
Storage Temperature: -40°C~70°C |
|
Operating Humidity: 5% ~ 90% (non-condensing) |
|
Storage Humidity: 5% ~ 95% (non-condensing) |
|
Software Features |
|
Operating Mode |
Router Mode |
Internet Connection Type |
Static IP, DHCP, PPPoE Dial-Up |
Network Security |
Guest Wi-Fi; Hide SSID; Wi-Fi Isolate |
Parental Control; IP/MAC binding |
|
Wireless Security: WPA-PSK/WPA2-PSK/WPA3-SAE |
|
Advanced Features |
Mesh: Supports zero-confifiguration networking of multiple devices, and supports automatic switching between wired and wireless networking for multiple devices. |
Wi-Fi optimization: Wi-Fi roaming, channel adjustment, power adjustment |
|
Firewall: Forbid TCP/UDP flflood attack |
|
Application: Port Forwarding; SD-LAN; Open VPN; |
|
Software upgrade: Firmware upgrade online or |
|
Diagnostics Utilities: Ping; IPV4 Traceroute; Nslookup |
|
Management and |
Support local management with web |
Support remote management with Wi-Tek Cloud platform |
