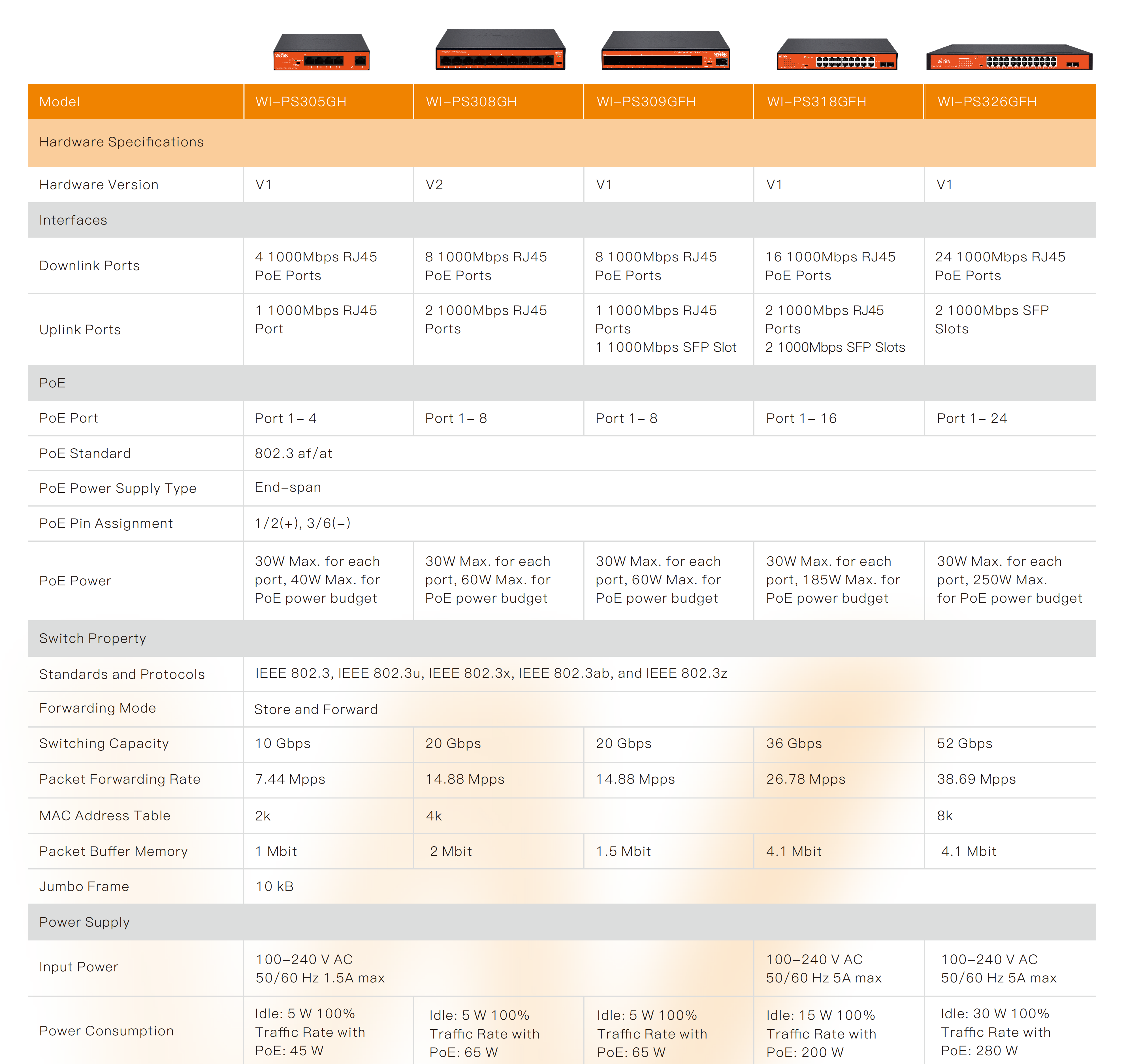

HARDWARE FEATURES

WI-PS305GH

Hardware Version

V1

Interface

4 1000Mbps RJ45 PoE Ports

1 1000Mbps RJ45 Port

Network Media

10Base-T: Pair 2 Category 3 (cat 3 ) and above UTP/ STP(≤100m)

100Base-TX: Pair 2 Category 5 (cat 5 ) and above UTP/ STP(≤100m)

1000BASE-TX: 6 Category and above UTP(≤150m)

Fan Quantity

Fanless

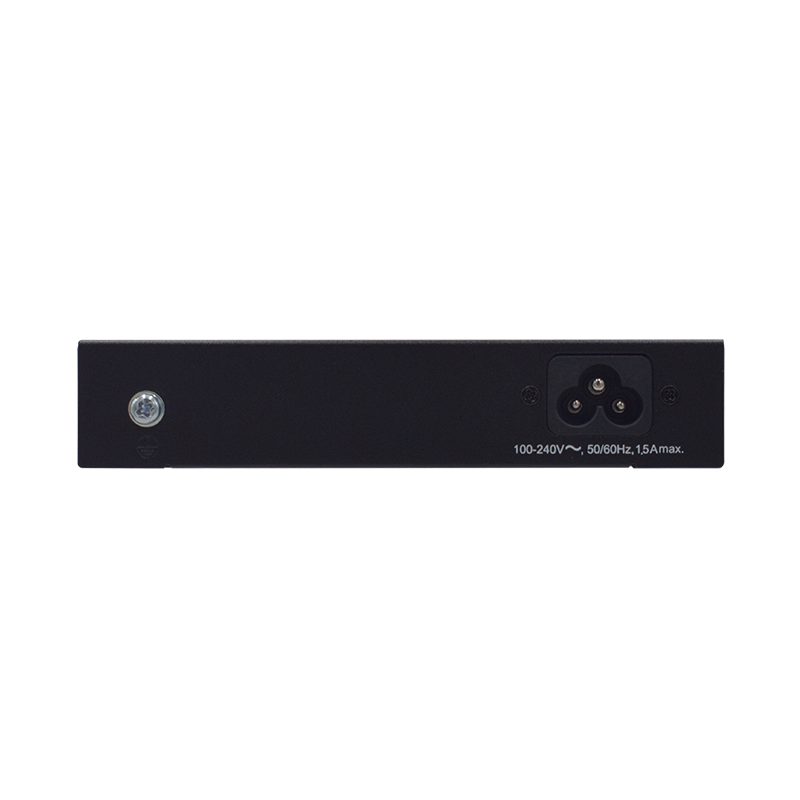

Power Supply

AC 100~240V 50/60HZ

PoE Standard

802.3 af/at compliant PoE

PoE Ports

Port 1- 4

PoE Power Budget

45W

Mac Address Table

2k

Packet Forwarding Rate

7.44Mpps

Jumbo Frame

10kB

Protection Level

6kV Lightning protection

6kV ESD Contact discharge

SOFTWARE FEATURES

Transmission Method

Store - And - Forward

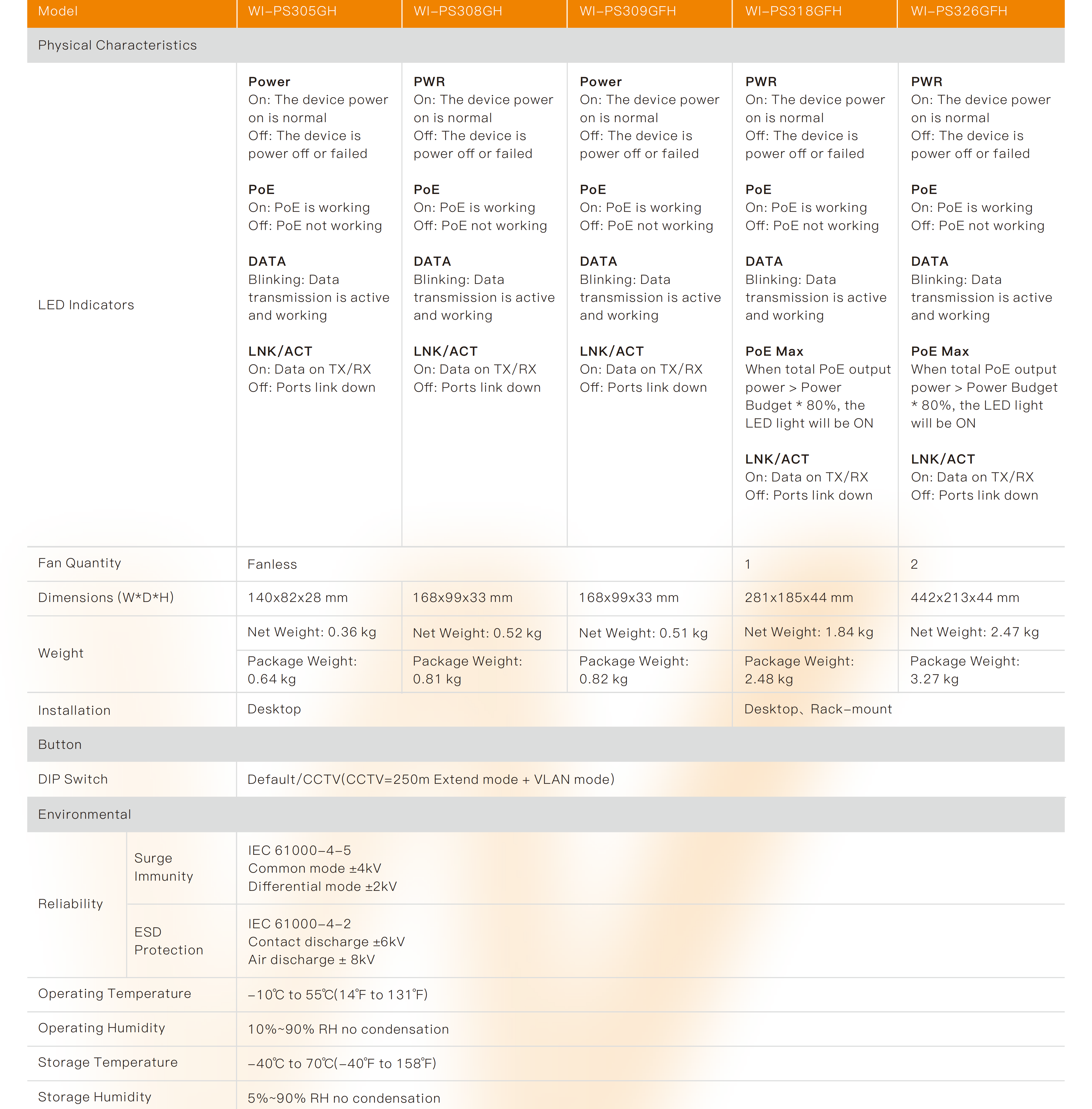

LED Indicator

PoE/Link/Power

DIP Switch

Default/CCTV

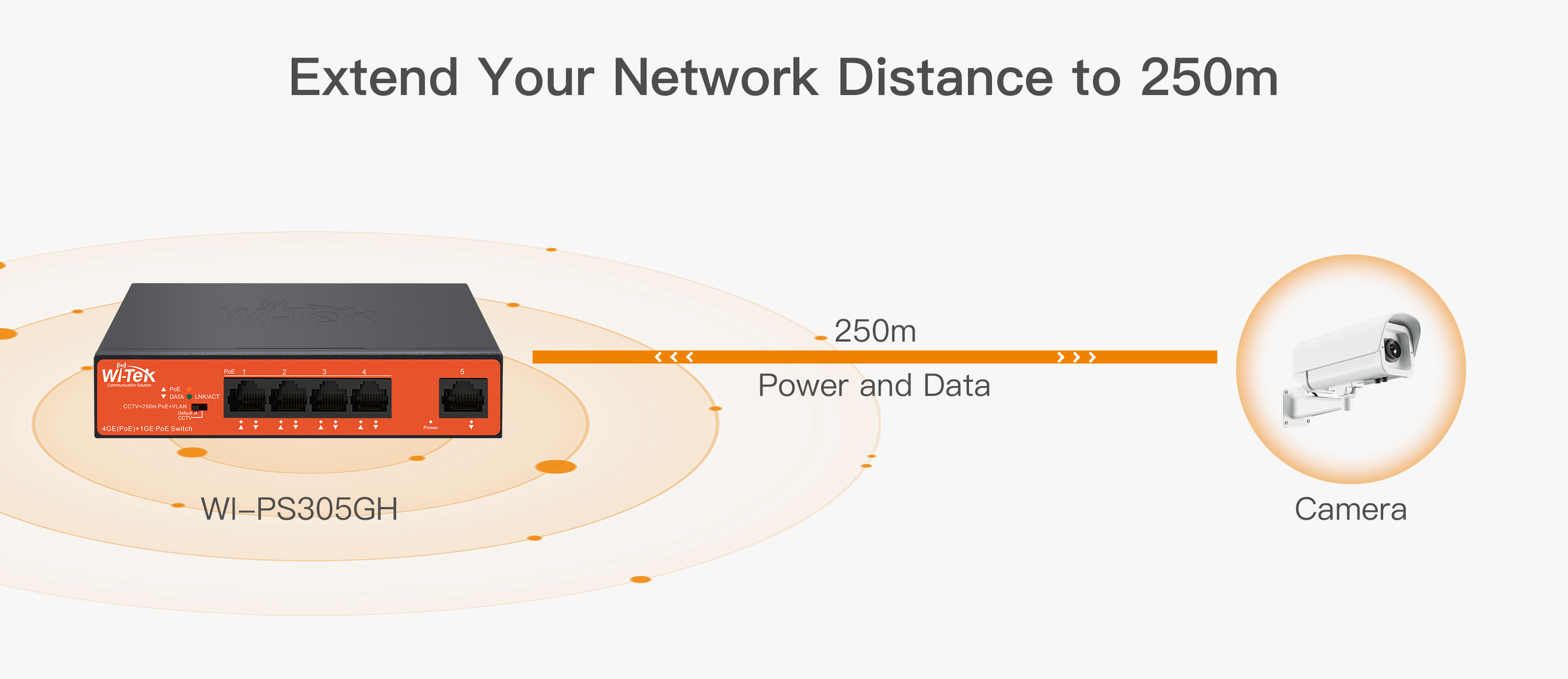

250m

Yes

Port VLAN

N/A

PoE WAtchdog

Yes

Advanced Functions

Mac Address Auto- Learning

Auto-Aging Store and forward

IEEE 802.3xflow control for Full-duplex Mode

Backpressure for Half-duplex Mode

OTHERS

Certification

CE , FCC , RoHS

Package Dimension

195×165×60mm

Switch Dimension

140×78×28mm

Gross Weight

0.66kg

Net Weight

0.36kg

Package Content

1 × PoE Switch

1 × Power Cord

1 × Quick Installation Guide

Environment

Operating Temperature: -10℃–55℃ (14℉–131℉)

Storage Temperature: -40℃–70 ℃ (-40℉–158℉)

Operating Humidity: 10– 90% RH non-condensing

Storage Humidity: 5– 90% RH non-condensing
