SP3018F

● Unmanaged PoE switch
● 16×10/100/1000 Base-T PoE+ and 2×1000 Base-X SFP ports
● Complies with IEEE 802.3af/at 30W PoE standard
● Smart DIP Switch:Link Aggregation/Extend/QoS/PoE Watchdog
● - 40℃~75℃ operating temperature
● 6kV surge immunity for power and Ethernet ports

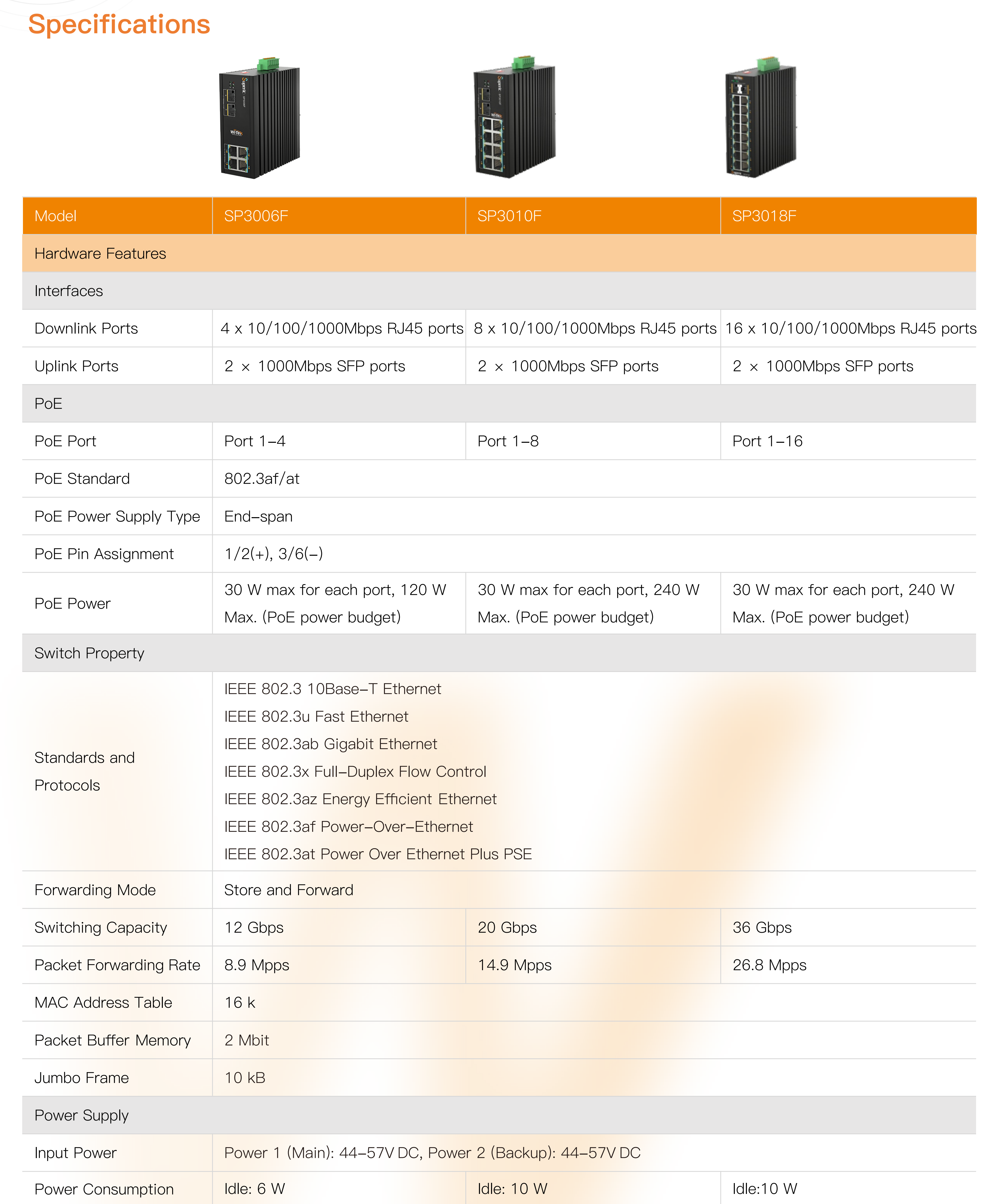

Interfaces

Downlink Ports

16*10/100/1000 Base-T PoE+ RJ-45(Auto-MDI/MDX)

Uplink Ports

2*1000 Base-X SFP

Alarm Port

One power failure alarm relay output port. Alarm relay current carry ability: 1A@24VDC

PoE

PoE Standard

IEEE 802.3af/at (PSE)

PoE Power Supply Type

End-span

PoE Pin Assignment

1/2(+)3/6(-)

PoE Power Output

46~55V DC

PoE Power

30W max for each port, 240W max

Switch Property

Standards

IEEE 802.3 10Base-T Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.3af Power-Over-Ethernet

IEEE 802.3at Power Over Ethernet Plus PSE

Forwarding Modes

Store and Forward

Packet Buffer

2Mbit

MAC Table

16k

Switching Capacity

36Gbps

Packet Forwarding Rate

26.8Mpps

Jumbo Frame

10kB

Power Supply

Input Voltage

Power 1 (Main): 44~57V DC, Power 2 (Backup): 44~57V DC    5.7A Max

Power Consumption

Full loading without PoE ≤ 10W PoE power budget ≤ 240W

Connector

Removable 6-pin terminal block

Reverse polarity protection

Support

Over-voltage protection

Support

Over-current protection

Support

Environmental Reliability

Industrial Standard

EMI: FCC Part 15B Class A

Surge protection of power: IEC 61000-4-5  6kV/4kV? 8/20us?

Surge protection of Ethernet ports: IEC 61000-4-5  6kV/2kV? 10/700us?

RS: IEC 61000-4-3 80 MHz-1 Ghz: 10 V/m

EFT: IEC 61000-4-4  power interface: 4kV?Ethernet ports: 2kV

CS: IEC 61000-4-6 10V

ESD: IEC 61000-4-2  Level 4? 8kV/15kV?

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Operating Temperature

-40~75℃

Storage Temperature

-40~85

Operating Humidity

5%~95% (Non-condensation)

LED Indicators

P (Power indicator)

Off: the device is power o ffor failed Green On: the device power on is normal

S (PoE Usage indicator)

Off: total PoE usage 50%

Red blinking: 50% total PoE usage 90% Red on: total PoE usage ≥ 90%

Copper ports

1-16 Green indicators Off: ports link down   On: ports link up Blinking: data on TX/RX

1-16 Yellow indicators Off: PoE not working On: PoE working

Fiber ports

17-18 Fiber ports indicators Off: ports link down

Green On: ports link up   Green Blinking: data on TX/RX

Dimensions (W*D*H)

54*115*158mm

Net Weight

1430g

Installation

Desktop/DIN-rail

Certifications

Certifications

CE, FCC, RoHS
