WI-PCES306G
● 6*10/100/1000Mbps RJ45 port
● 4×802.3af/at PoE+ ports, total power supply 60W
● Support Wi-Tek Cloud management, mobile APP remote maintenance
● Support port automatic anti-loop to ensure business continuity
● Support various real-time alarms, even novice can troubleshoot
● Support Onvif protocol to automatically identify IP camera
|

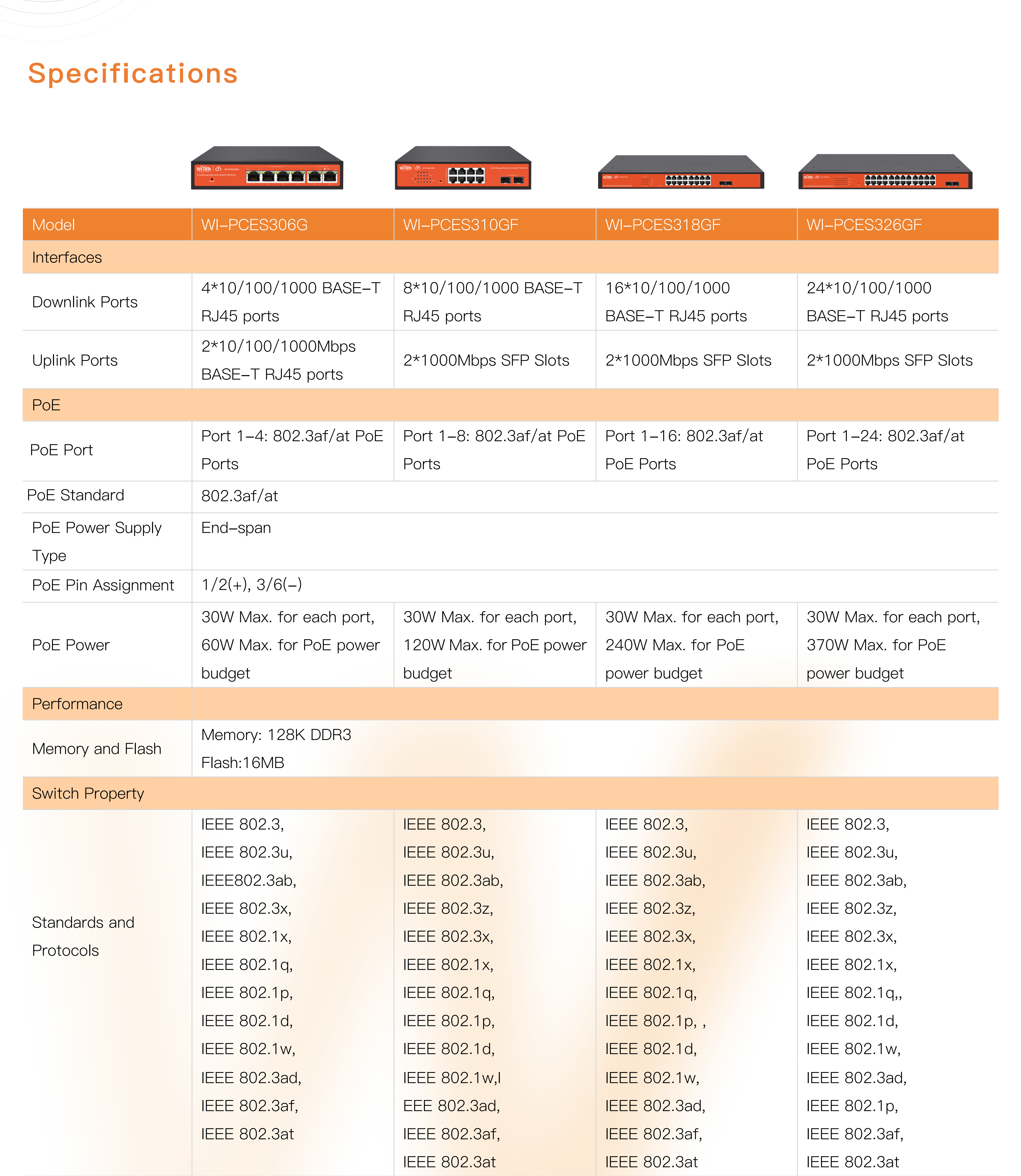

Hardware Specifications |
||
|
Hardware Version |
V1 |
|
|
Interface |
6*10/100/1000Mbps RJ45 Ports |
|
|
Port Standard |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1x, IEEE 802.1q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w, IEEE 802.3ad, IEEE802.3af, IEEE802.3at |
|
|
PoE |
PoE Standard |
802.3af/at |
|
PoE Ports |
4 up to 32W |
|
|
PoE Power Budget |
60W |
|
|
Power Supply |
AC 100-240V 50/60Hz 65W |
|
|
Standby Power Consumption |
115V 60Hz-3.38W 230V 50Hz-4.68W |
|
|

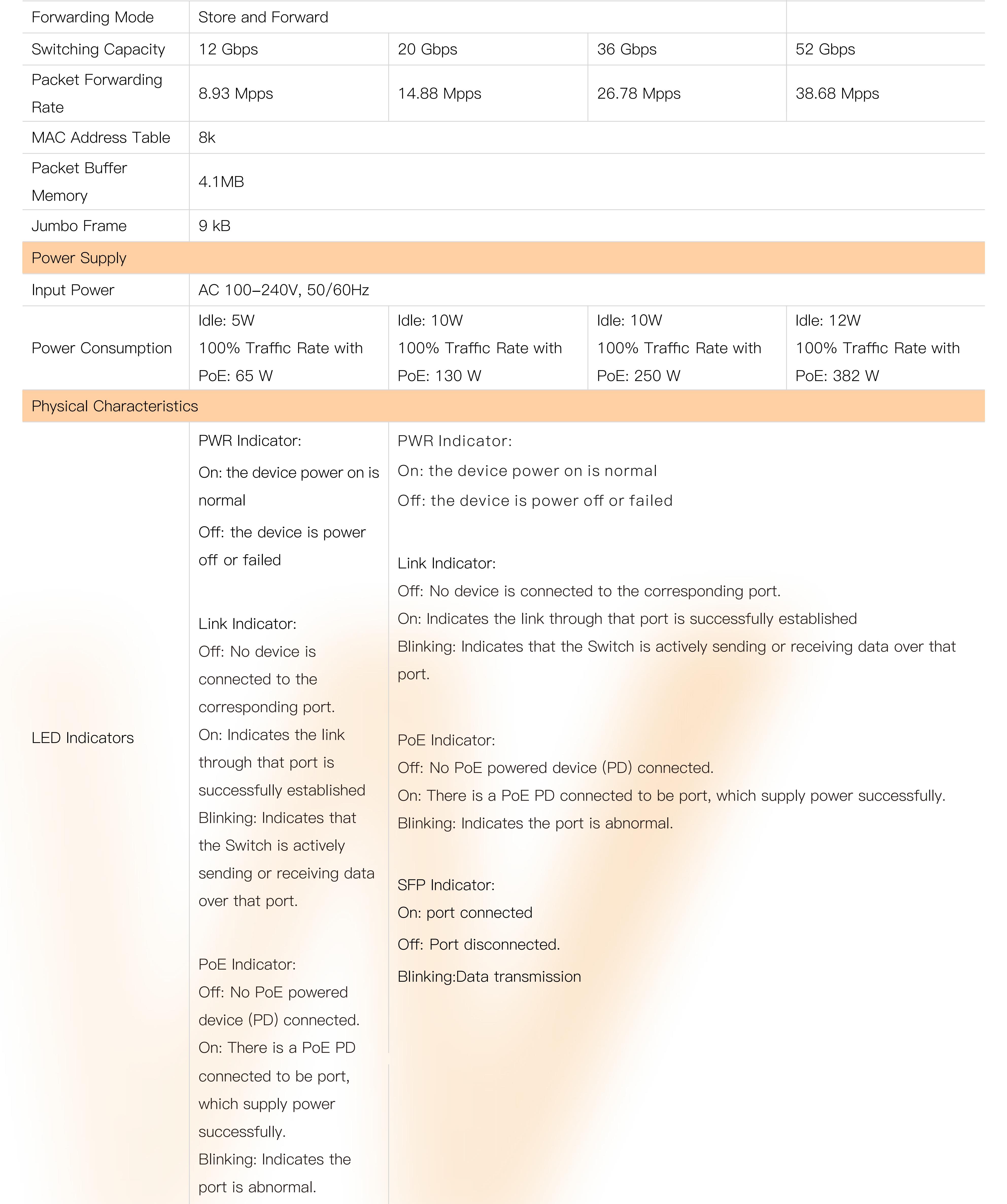

Switching Capacity |
12Gbps |
|
|
Packet Forwarding Rate |
8.93Mpps |
|
|
Jumbo Frame |
9216Bytes |
|
|
MAC Address Table |
8K |
|
|
LED indicator |
PWR:Power indicator (steady yellow is normal) 1~6 port:(Data indicator is green） |
|
|
Dimensions ( W x D x H ) |
168*86*32mm |
|
|
Fan Quantity |
Fanless |
|
|
RJ45 PoE Power Supply |
Mode A 1/2(+)3/6(-) |
|
|
Protection Level |
Surge Protection: Differential mode ±2KV, Common mode ±4KV Electrostatic Standard: Contact ±6KV, Air ±8KV Protection class: IP30 |
|
|
Transmission Mode |
Store— Forward |
|
|
Installation |
Desktop |
|
|
Software Features |
||
|
System Management
|
Static IP |
|
|
DHCP Client |
||
|
Static DNS |
||
|
DNS Client |
||
|
Web-based Management |
||
|
Telnet |
||
|
WEB page software upgrade |
||
|
Cable Testing |
||
|
Security |
IP MAC address binding |
|
|
MAC Address Filter |
||
|
Loop Prevention |
||
|
Loop Disabled Port |
||
|
DHCP Snooping |
||
|
VLAN |
Port-based VLAN |
|
|
VLAN 16 |
||
|
Port |
Port Flow Control |
|
|
Broadcast storm suppression |
||
|
Port Isolation |
||
|
Many-to-one Port Mirroring |
||
|
QoS(Port Speed Limit) |
||
|
Onvif |
Support cloud platform to automatically identify IP cameras |
|
|
Cloud Management |
Support Wi-Tek cloud platform management |
|
|
Environment |
Operating temperature/humidity: 0°C ~ 40°C; 10%～90% RH no condensation Storage temperature/humidity: -40～+70°C; 5%～95% RH no condensation |
|
|
Package Contents |
Power cordX1, Switch X1, Quick Installation GuideX1 |
|
|
Certification |
CE, FCC, RoHS,UKCA |
|
