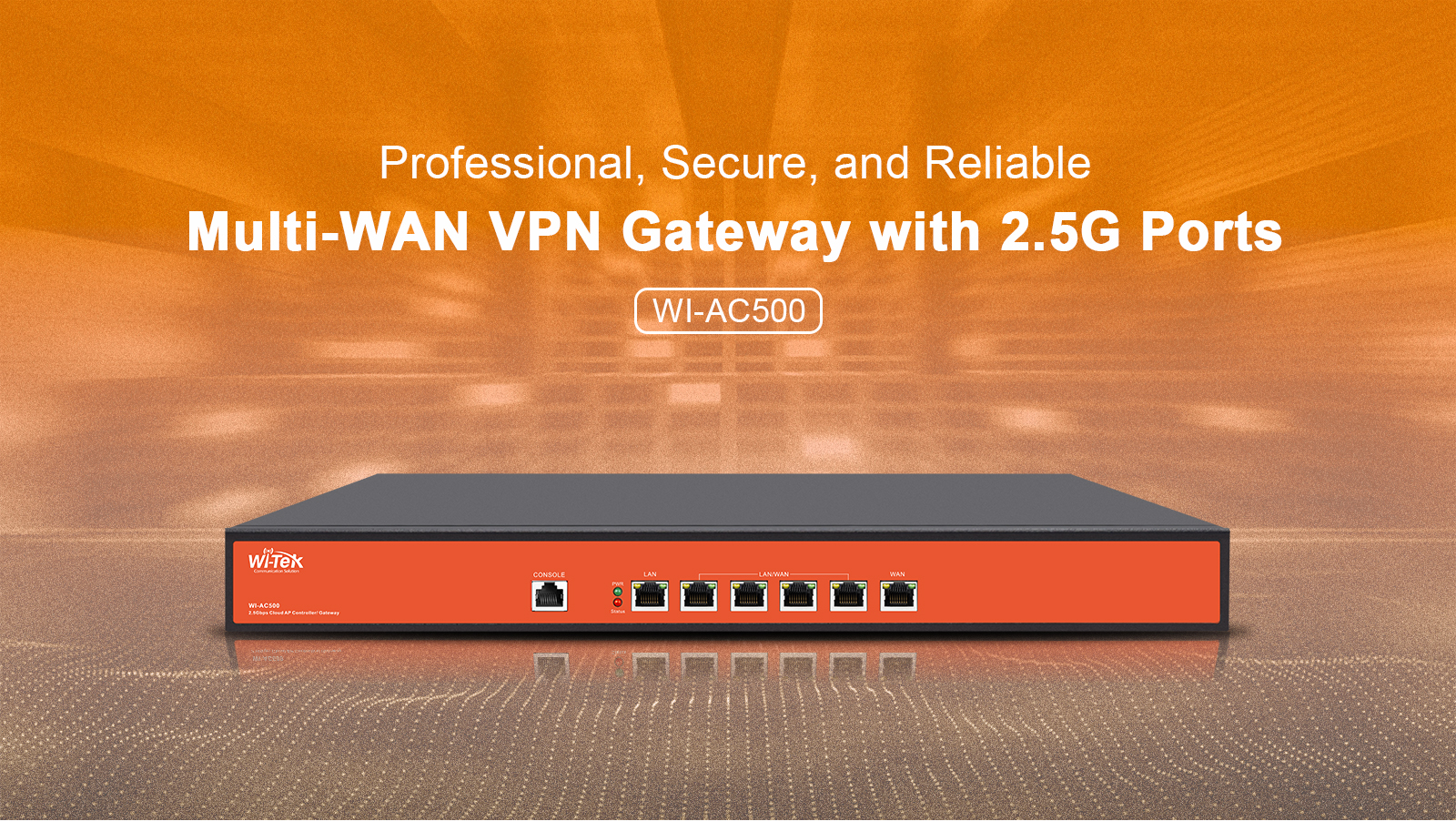

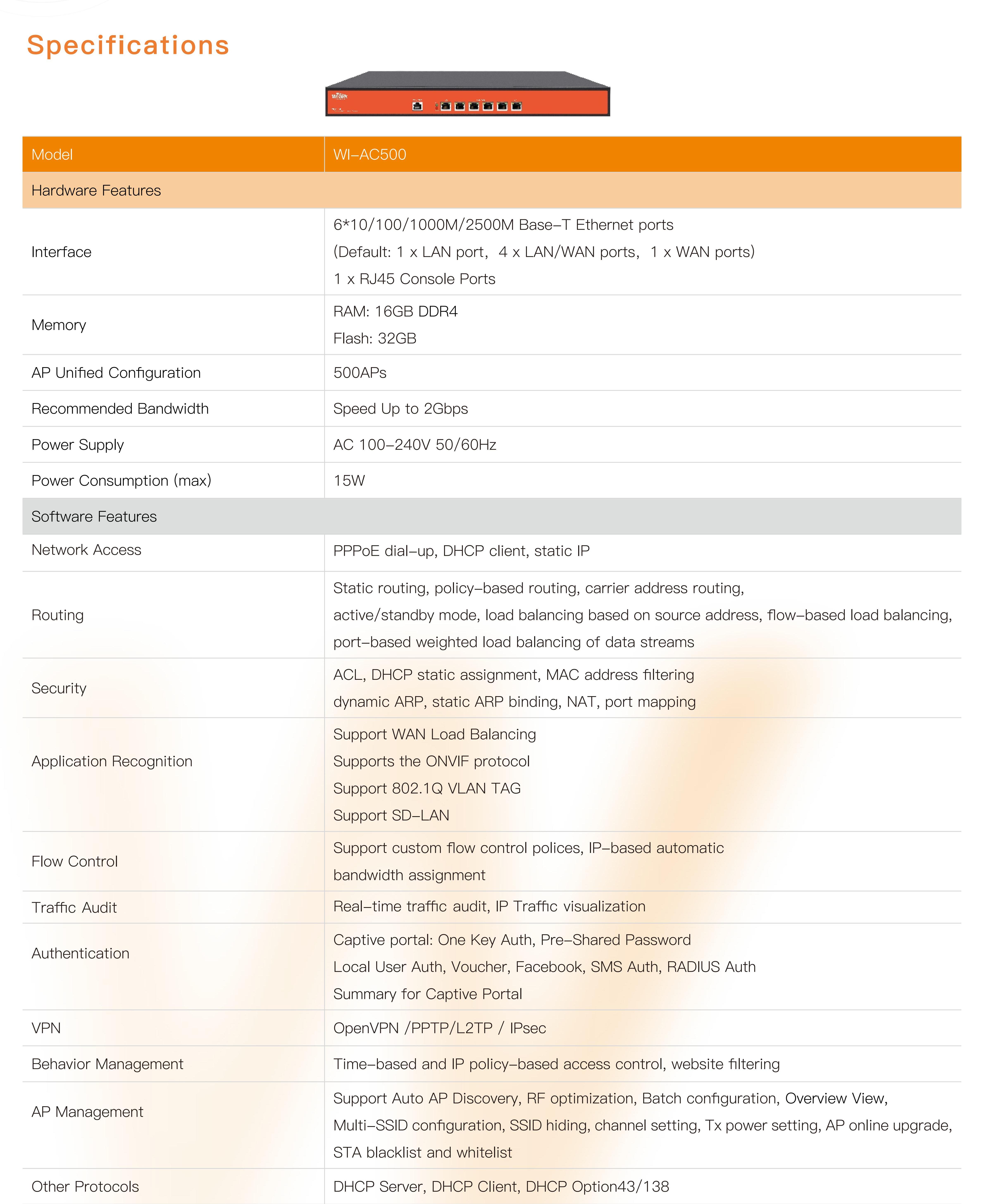

Gateway
|
Model
|
WI-AC500
|
Hardware Version
|
V1
|
Hardware
|

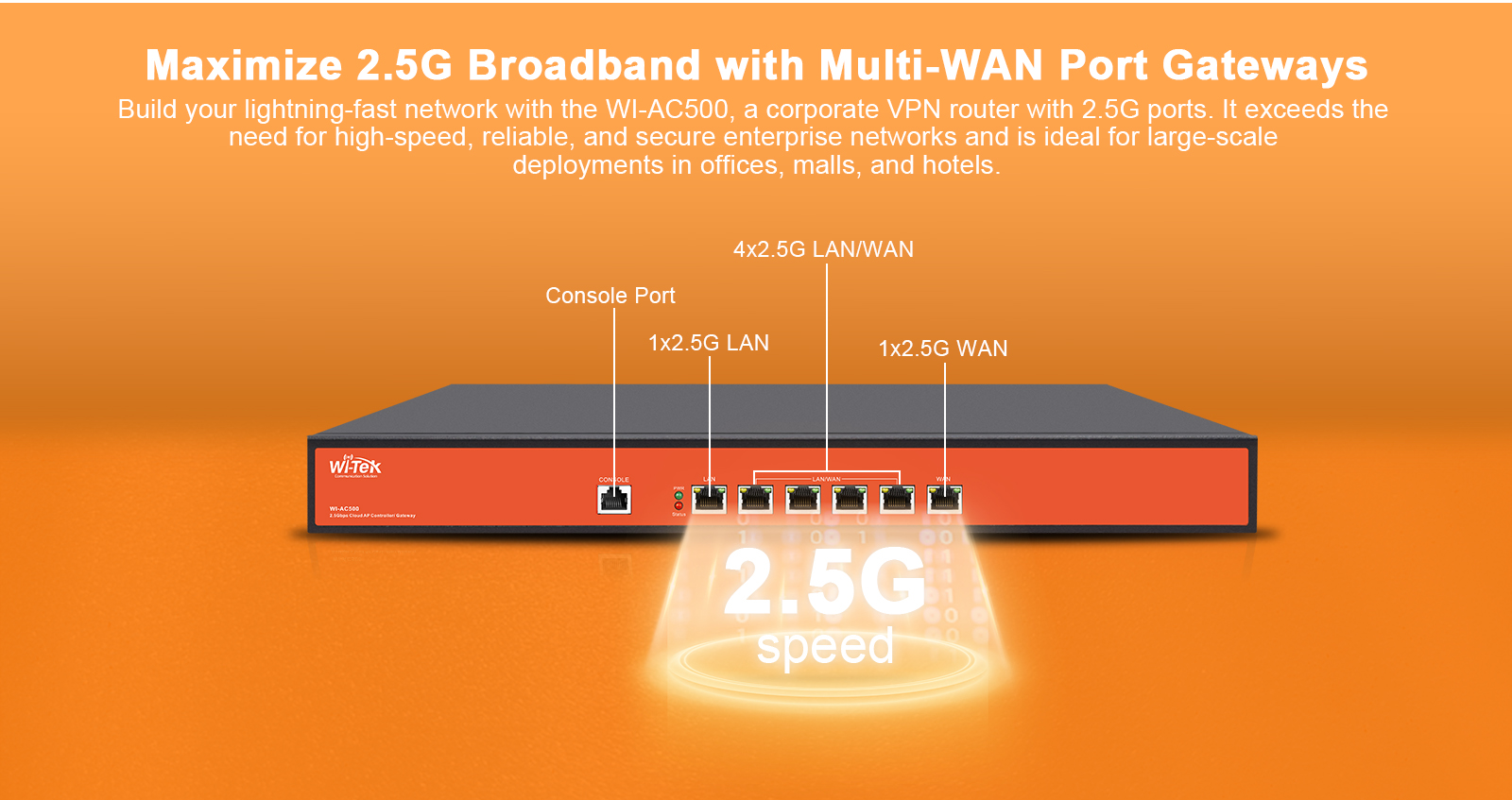

Interface
|
6*10/100/1000M/2500M Base-T Ethernet ports.
(Default: 1 x LAN port,4 x LAN/WAN ports,1 x WAN ports)
1 x RJ45 Console Ports.
|
CPU
|
4 Core@2.00GHz
|
RAM
|
16GB
|
ROM
|
32GB SSD
|
AP Unified Configuration
|
500APs
|
Recommended Bandwidth
|
Speed Up to 2Gbps
|
Power Supply
|
100-240V 50/60Hz
|
Power Consumption
|
<15W
|

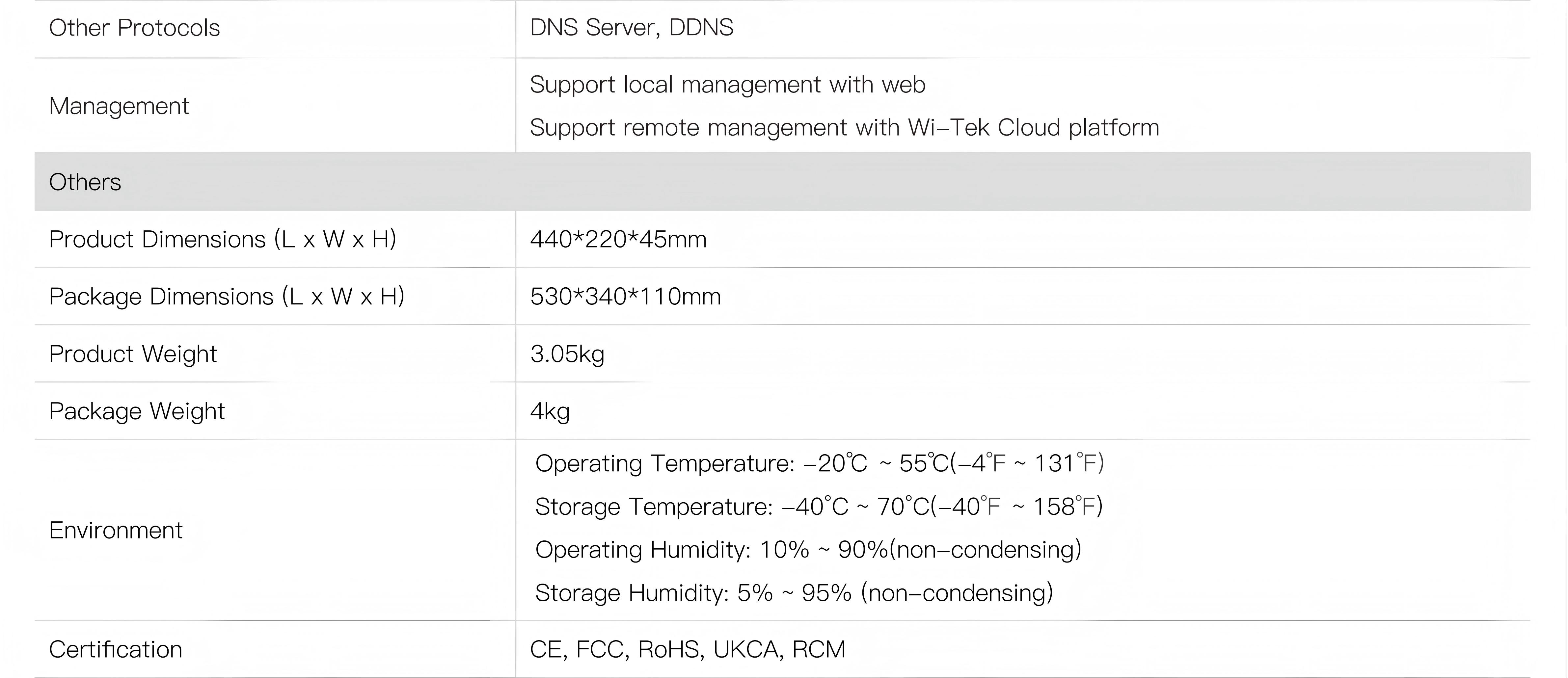

Dimensions
|
440mm * 220mm * 45mm
|
Environment
|
Temperature: -20℃~+55℃ (working), -40℃~+70℃ (storage)
Humidity (non-condensing): 5% to 90% (working), 5% to 95% (storage)
|
Software Features
|
Network Access
|
PPPoE dial-up, DHCP client, static IP
|
Routing
|
Static routing, policy-based routing, carrier address
routing,
active/standby mode, load balancing based on source address, flow-based load
balancing, port-based weighted load balancing of data streams.
|
Security
|
ACL, DHCP static assignment, MAC address filtering
dynamic ARP, static ARP binding, NAT, port mapping
|
Other Protocols
|
DHCP Server, DHCP Client, DHCP Option43/138,
DNS Server, DDNS
|
Application Recognition
|

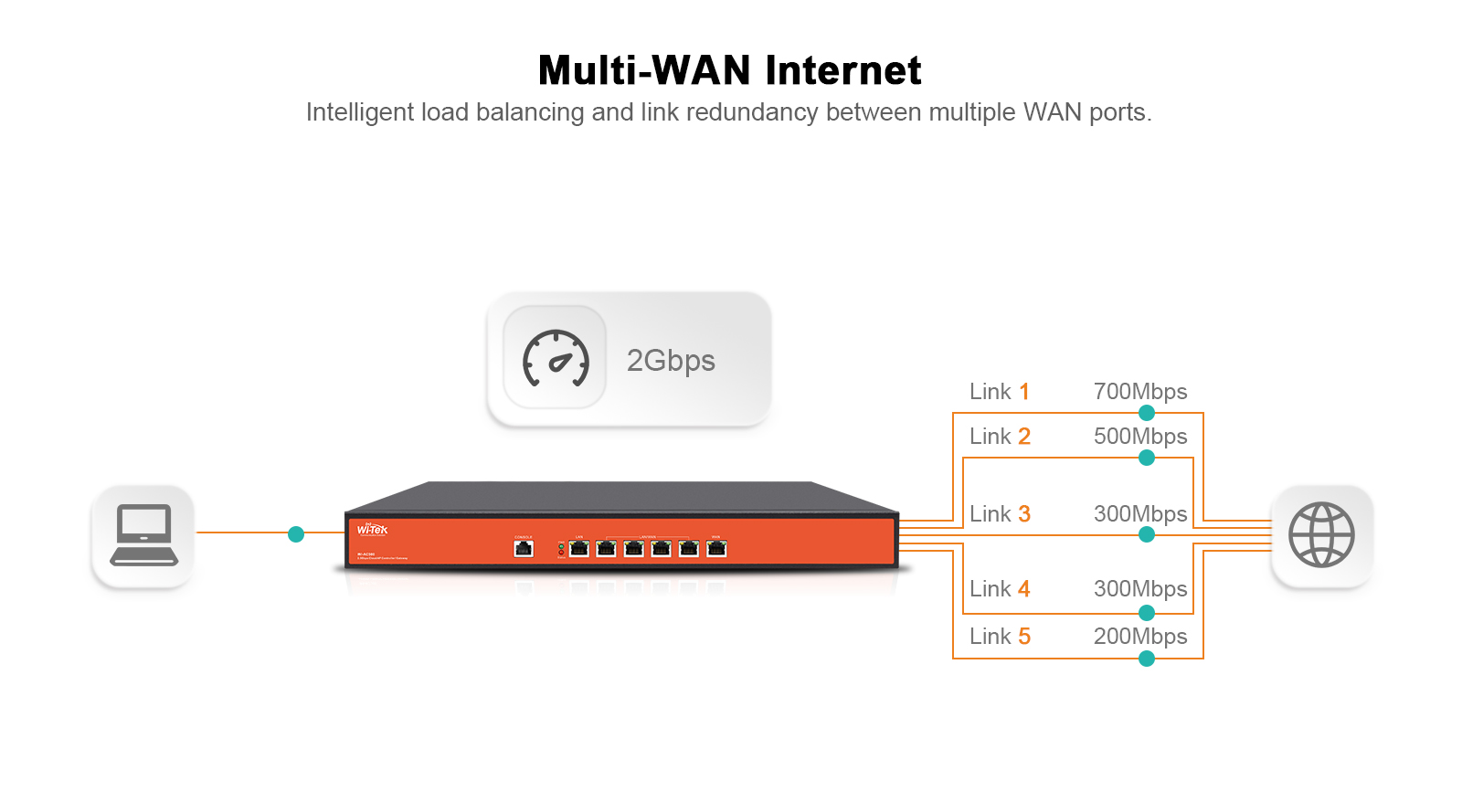

Support WAN Load Balancing
Supports the ONVIF protocol
Support 802.1Q VLAN TAG
Support SD-LAN
|
Flow Control
|
Support custom flow control polices, IP-based
automatic
bandwidth assignment
|
Traffic Audit
|
Real-time traffic audit, IP Traffic visualization
|
Authentication
|
Captive Portal: One Key Auth, Pre-Shared Password
Local User Auth, Voucher, Facebook, SMS Auth, RADIUS Auth,
Summary for Captive Portal,
|

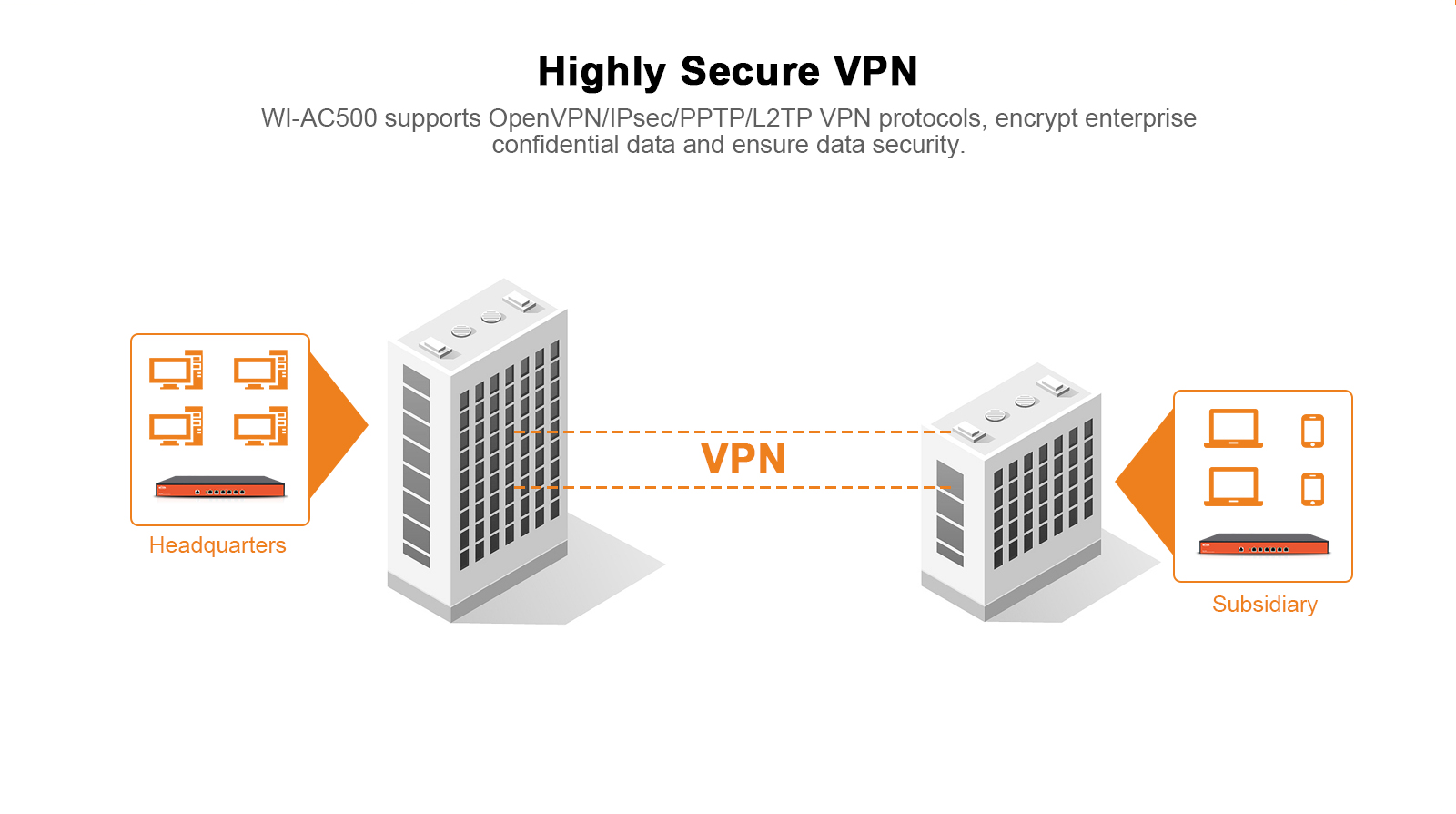

VPN
|
Open VPN /PPTP/L2TP / IPsec
|
Behavior Management
|
Time-based and IP policy-based access control, website
filtering
|

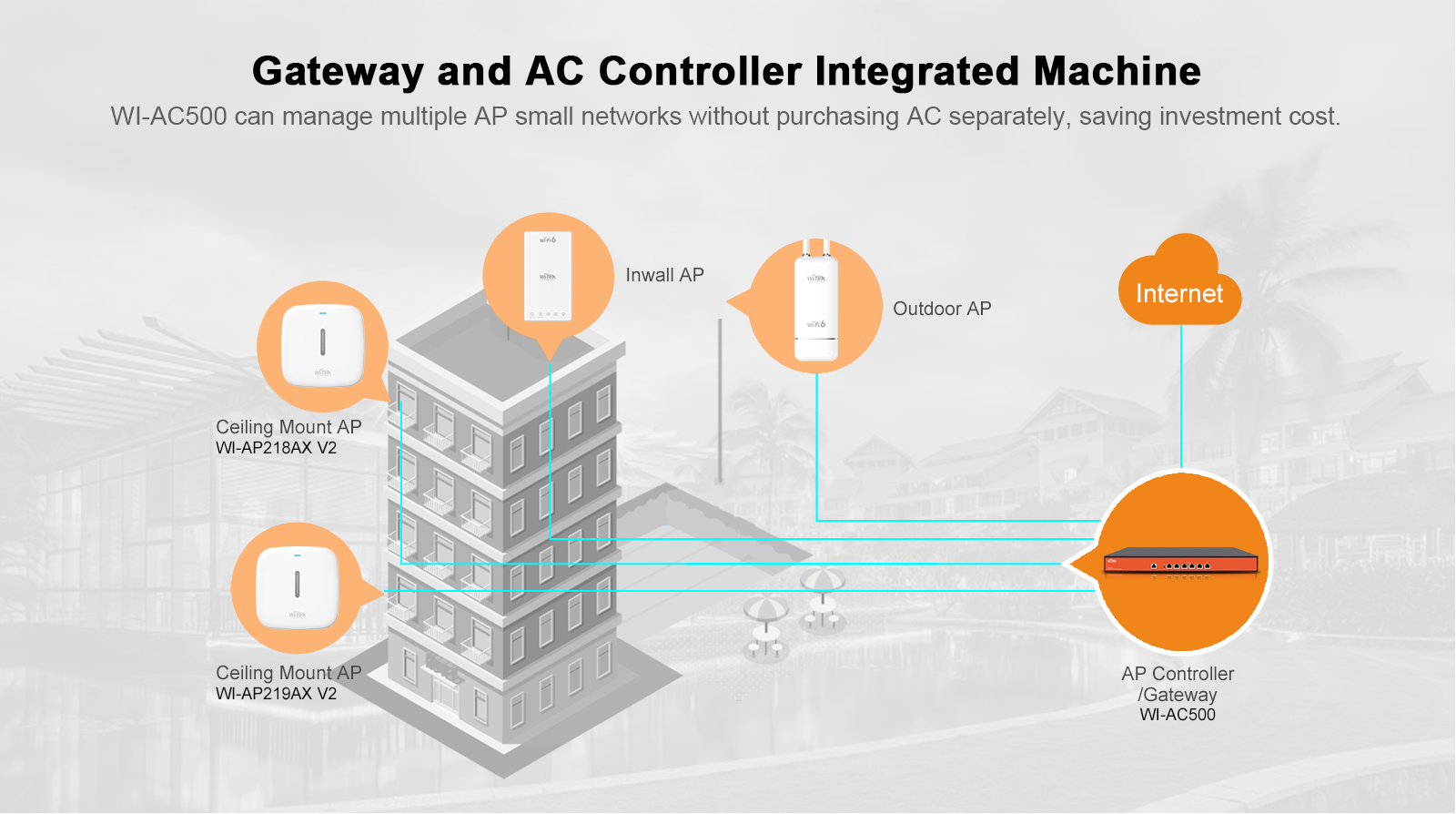

AP Management
|
Support Auto AP Discovery, RF optimization, Batch
configuration, Overview View, Multi-SSID configuration, SSID hiding, channel
setting, Tx power setting, AP online upgrade, STA blacklist and whitelist
|
Management
|
Support local management with web

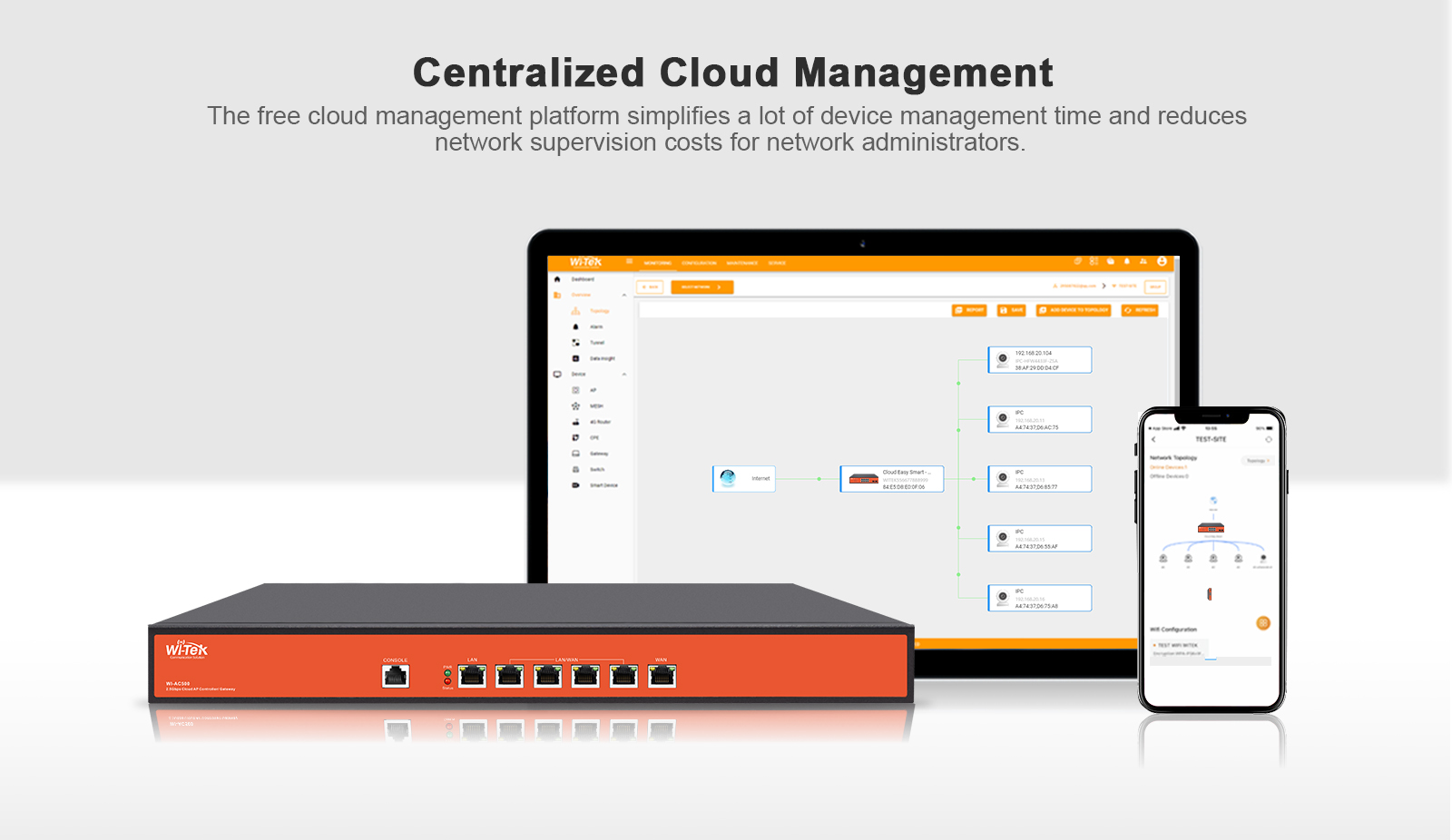

Support remote management with Wi-Tek Cloud platform
|
