WI-AP317
● 2 x 10/100/1000Mbps Ethernet Ports
● 300Mbps at 2.4GHz + 867Mbps at 5GHz
● Support IP65 Weatherproof
● Support Fit/Fat/Repeater/WISP modes
● Support AP controller and cloud management
Model
WI-AP317

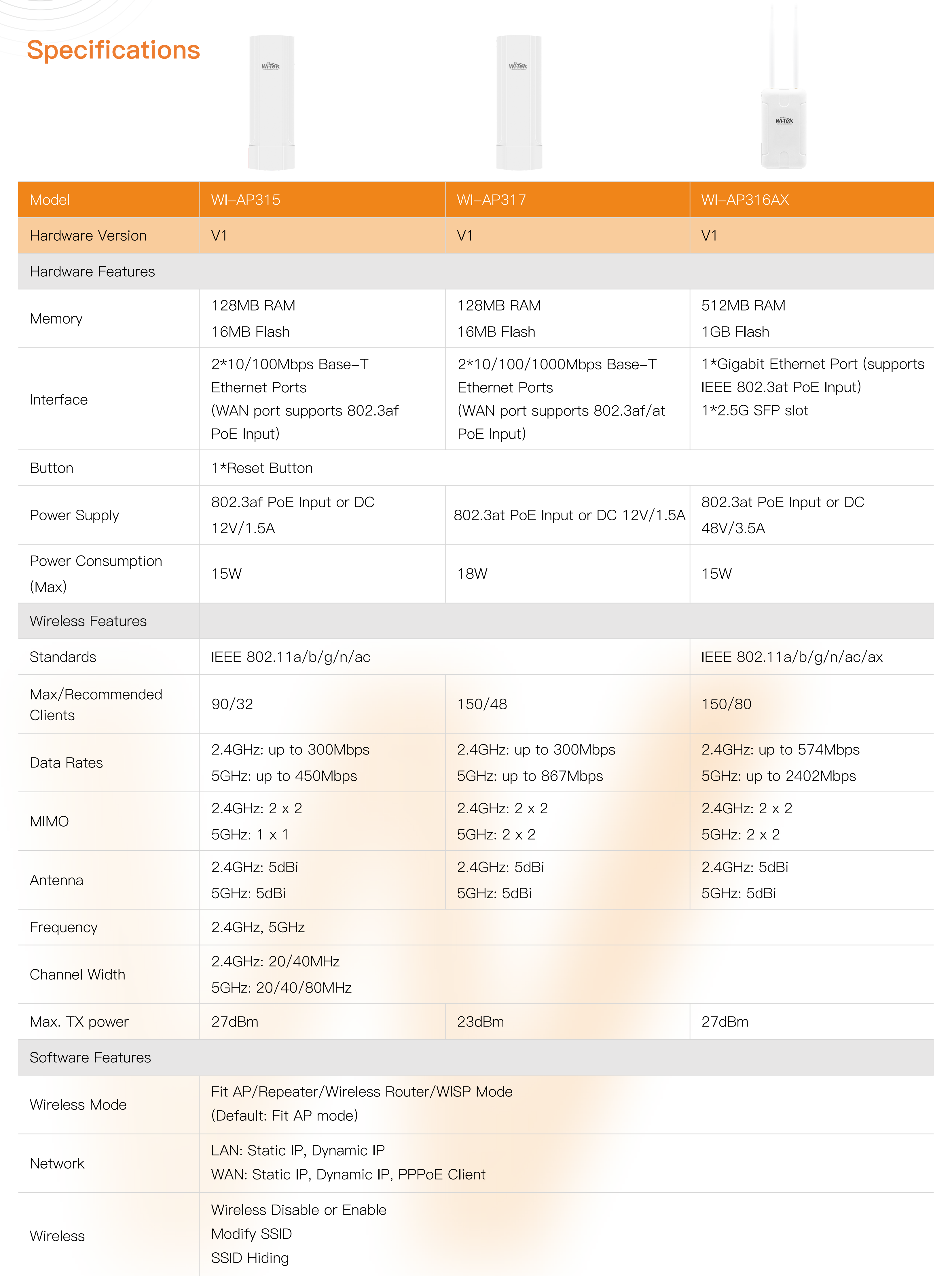

Hardware Specifications
Wireless Standards
802.11ac wave2/wave1
802.11n/b/g/a
Operating Bands
2.4GHz & 5GHz
Antenna
2.4Ghz:5dBi, 5GHz: 5dBi
Spatial Steams
2.4GHz:2x2 MIMO 5GHz:2x2 MIMO
Signal Rate
Up to 300Mbps at 2.4GHz
Up to 867Mbps at 5GHz
Receiver Sensitivity
2.4GHz
802.11b: -85dBm@11Mbps -94dBm@1Mbps
802.11g: -72dBm@54Mbps -90dBm@6Mbps
802.11n HT20: -70dBm@MCS7 -88dBm@MCS0
802.11n HT40: -68dBmMCS7 -86dBm@MCS0
5GHz
802.11a: -72dBm@54Mbps -90dBm@6Mbps
802.11n HT20: -70dBm@MCS7 -88dBm@MCS0
802.11n HT40: -68dBm@MCS7 -86dBm@MCS0
802.11ac HT80: -58dBm@MCS9 -80dBm@MCS0
Maximum Transmit Power
<23dbm
Interface
(2)10/100/1000Base-T Ethernet ports
Power Supply
DC 12V/1.5A (Not Included)
802.3at PoE Supported
Power Consumption
< 20W
Installation
Pole/Wall Mounting
External Buttons
reset button (long press for 8 seconds to restore the factory default configuration)
Dimensions
315mm*145mm*80mm
Environment
Operating Temperature:-30°C ~ 55°C
Storage Temperature:-40°C ~ 70°C;
Operating Humidity: 5% ~ 95% (non-condensing)
Storage Humidity: 5% ~ 95% (non-condensing)
Software Features
Operating Mode
Fit AP, Fat AP, Repeater, WISP mode
Wireless Function
Up to 16 SSIDs
Support SSID hiding, Enable/Disable Wireless Radio
RF Parameter setting
Roaming
Support Layer 2 roaming

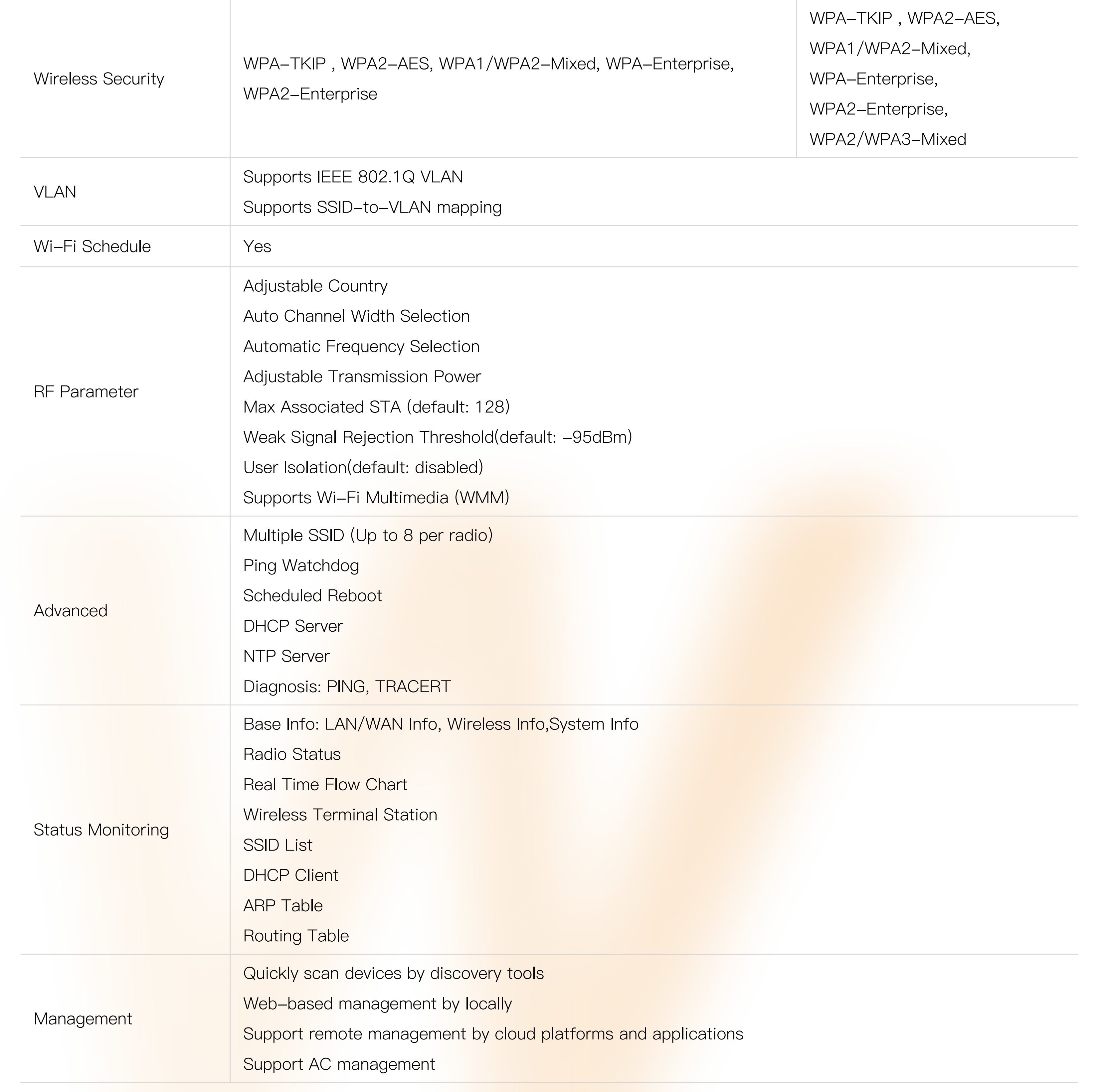

Wireless Security
Captive Portal Authentication
Static blacklist and whitelist
Wireless Isolation Between Clients
SSID to VLAN Mapping
Support 802.1X
WPA/WPA2/PSK/WPA/WPA2-Enterprise
Internet Connection Type
Support Static IP, DHCP, PPPoE Dial Up
Management
Support local management with web
Support remote management with Wi-Tek Cloud platform
Platform Management
Features
Automatic RF adjustment via the platform
Unified configuration via the platform
Unified monitoring via the platform
