WI-MS310GF
● 8 Gigabit ports and 2 Gigabit SFP Slots
● Support IGMP Snooping, Link Aggregation, Loop Prevention
● QoS and IGMP snooping function optimize voice, video applications
● Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
● Support Web, CLI(Console Port, Telnet, SSH), SNMP and RMON bring powerful management capabilities
|

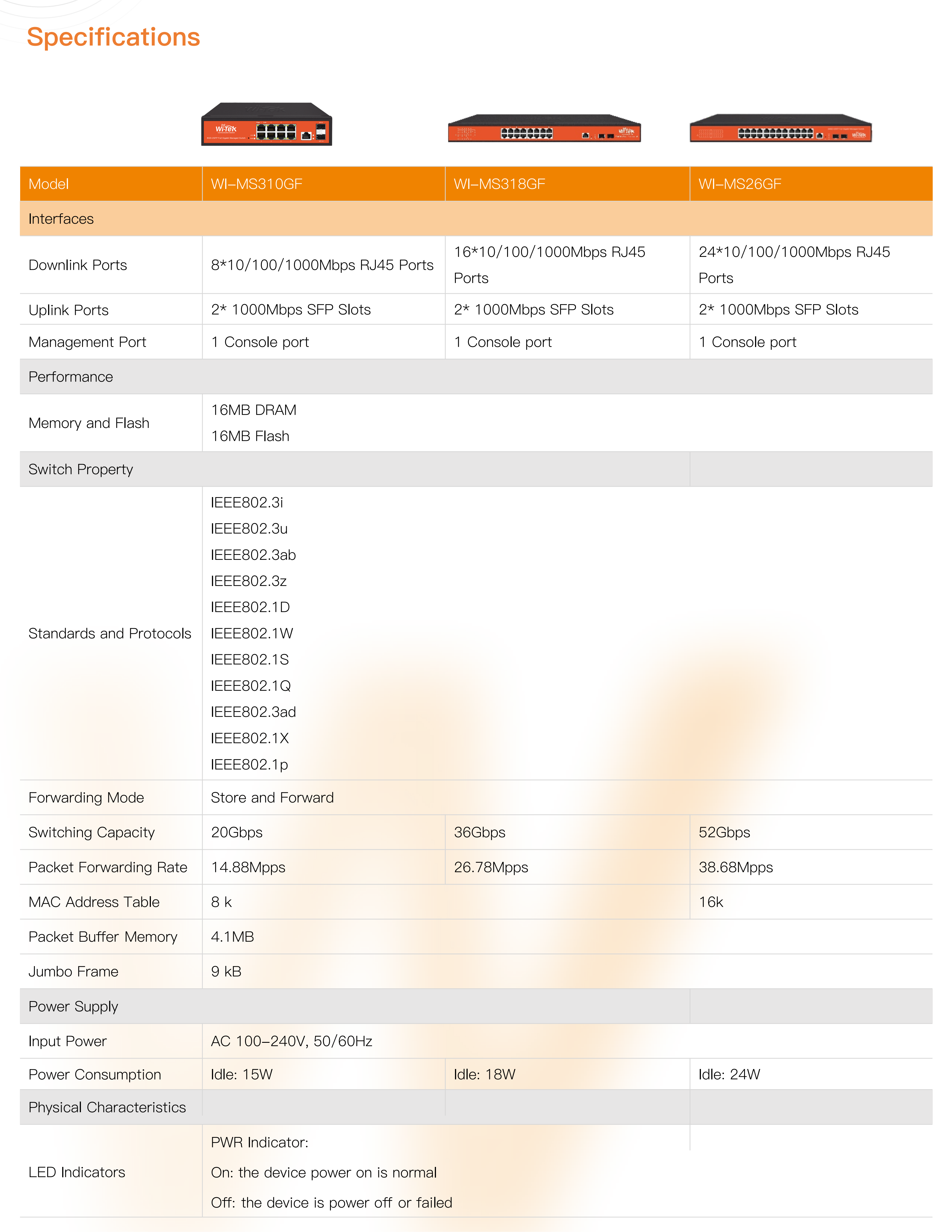

Hardware Specifications |
||
|
Interface |
8x10/100/1000Mbps RJ45 Ports 1xConsole Port |
|
|
Port Standard |
IEEE 802.3 i:10BASE-T Ethernet; IEEE 802.3 u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3z:1000BASE-X Gigabit Ethernet(Optical fiber) |
|
|
Power Supply |
AC 110~240V 50/60HZ |
|
|
Switching Capacity |
20Gbps |
|
|
Packet Forwarding Rate |
14.9Mpps |
|
|
Jumbo Frame |
16KB |
|
|
MAC Address Table |
8K |
|
|
Dimensions ( W x D x H ) |
225mm*105mm*32mm |
|
|
Fan Quantity |
Fanless |
|
|
Protection Level |
Common Mode ± 6KV, Differential Mode ± 4KV |
|
|
Electrostatic Standard |
Contact 6KV Air 8KV |
|
|
Transmission Mode |
Store— Forward |
|
|
Installation |
Desktop |
|
|

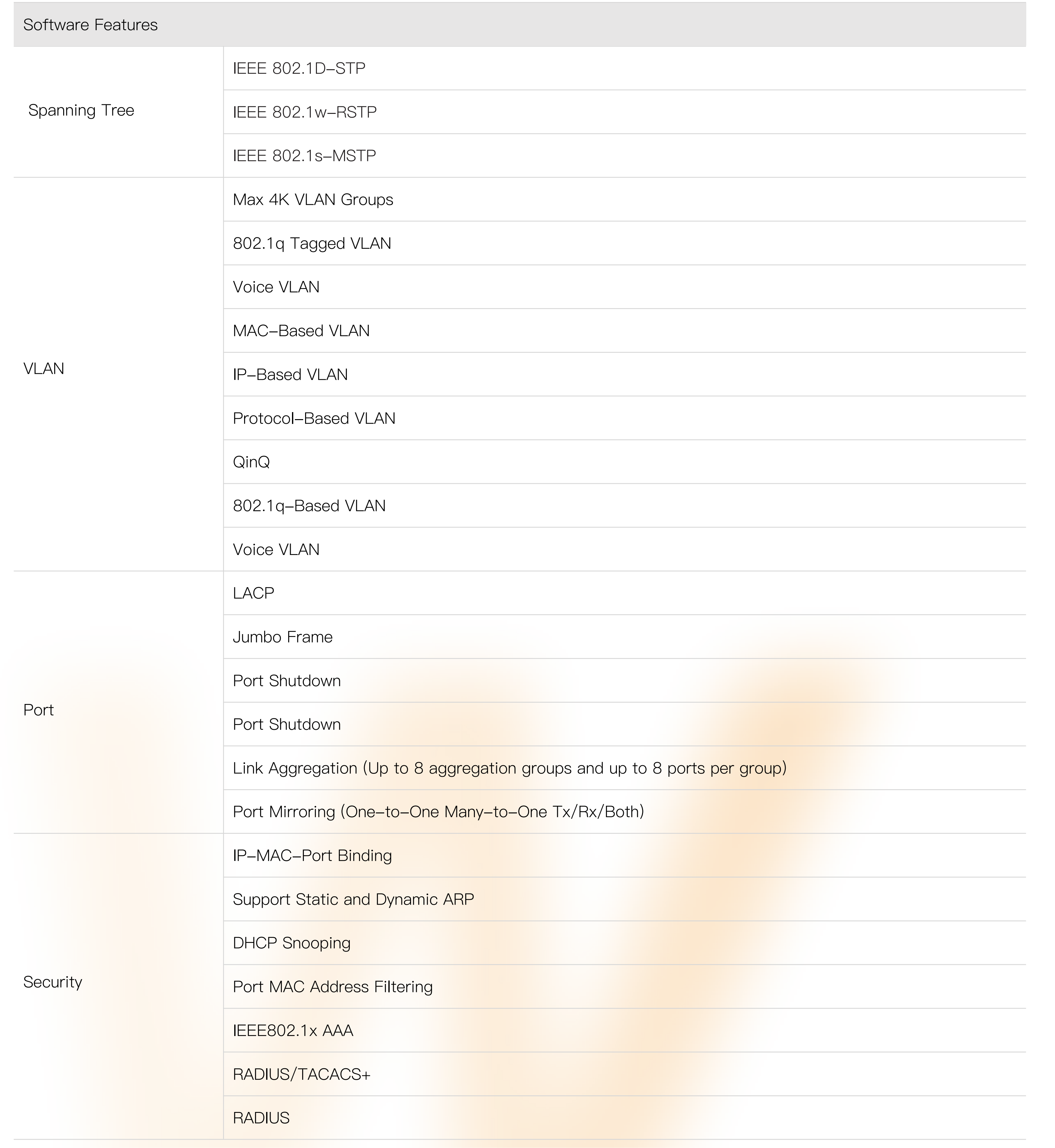

Software Features |
||
|
Spanning Tree |
IEEE 802.1D - STP |
|
|
IEEE 802.1w - RSTP |
||
|
IEEE 802.1s - MSTP |
||
|
|
Port Loop Detection |
|
|
|
EAPS |
|
|
Reliability |
ERPS |
|
|
|
LLDP/LLDP-MED |
|
|
|
UDLD |
|
|
VLAN |
Max 4K VLAN Groups |
|
|
802.1q Tagged VLAN |
||
|
MAC-Based VLAN |
||
|
IP-Based VLAN |
||
|
QinQ |
||
|
Protocol- Based VLAN |
||
|
Voice VLAN |
||
|
Port |
LACP |
|
|
Port Shutdown |
||
|
Jumbo Frame |
||
|
|
Port mirroring( One-to-One Many-to-One Tx/Rx/Both) |
|
|
Link Aggregation( Up to 8 aggregation groups and up to 8 ports per group) |
||
|

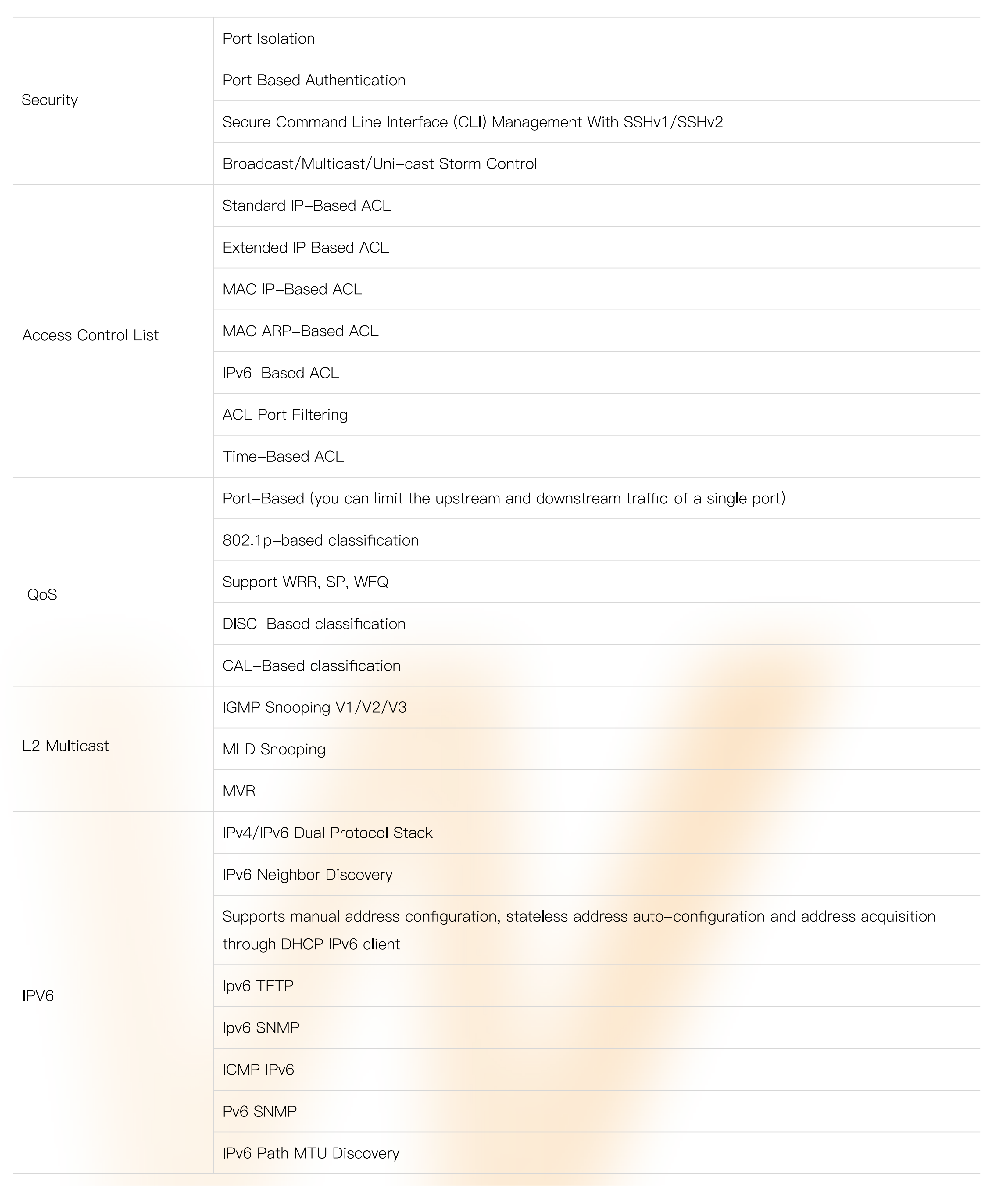

Security |
IP-MAC-Port Binding |
|
|
IEEE802.1x AAA |
||
|
Support Static and Dynamic ARP |
||
|
RADIUS/TACACS+ |
||
|
RADIUS |
||
|
Port Isolation |
||
|
Port Based Authentication |
||
|
Secure Command Line Interface (CLI) Management With SSHv1/SSHv2 |
||
|
Broadcast/Multicast/Uni-cast Storm Control |
||
|
Port MAC Address Filtering |
||
|
DHCP Snooping |
||
|
Access Control List |
Standard IP-Based ACL |
|
|
Extended IP Based ACL |
||
|
MAC IP-Based ACL |
||
|
MAC ARP-Based ACL |
||
|
IPv6-Based ACL |
||
|
ACL Port Filtering |
||
|
Time-Based ACL |
||
|
QOS |
Port-Based (uplink and downlink traffic of a single port can be restricted) |
|
|
802.1p-Based Classification |
||
|
Support WRR, SP, WFQ |
||
|
DISC-Based Classification |
||
|
ACL-Based Classification |
||
|
L2 M ulticast |
IGMP Snooping v1/v2/v3 |
|
|
MLDS nooping |
||
|
MVR |
||
|
IPV6 |
IPv4/IPv6 Dual Protocol Stack |
|
|
IPv6 Neighbor Discovery |
||
|
Support manual address configuration, stateless address auto-configuration and tasteful address configuration obtained through DHCPv6 client |
||
|
IPv6 TFTP |
||
|
IPv6 SNMP |
||
|
ICMPv6 |
||
|
IPv6 Path MTU Discovery |
||
|
IPv6 SSH |
||
|

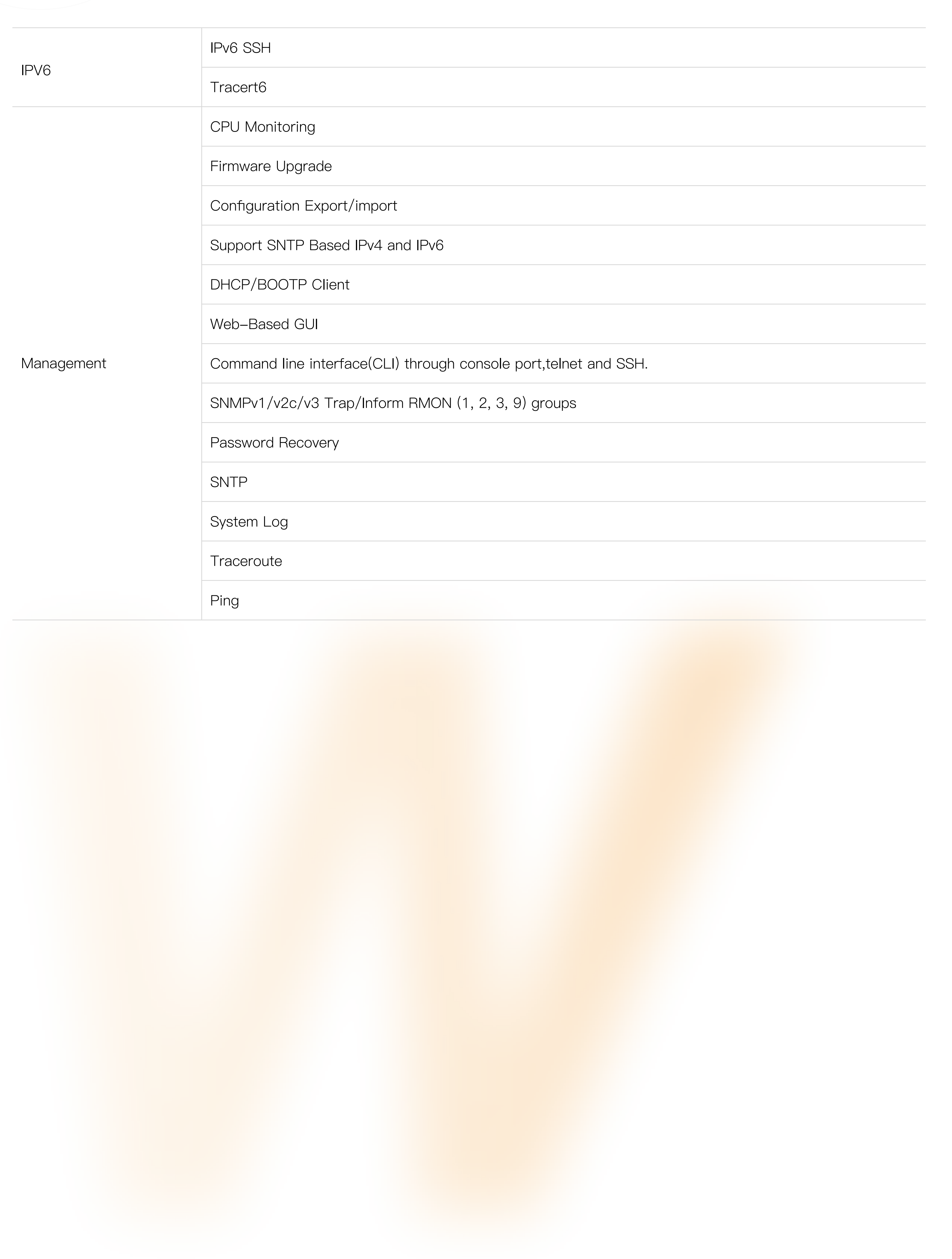

Management |
Web-Based GUI |
|
|
Command Line Interface (CLI) through console port, telnet and SSH |
||
|
SNMPv1/v2c/v3 Trap/Inform RMON (1, 2, 3, 9) groups |
||
|
Password Recovery |
||
|
SNTP |
||
|
System Log |
||
|
Traceroute |
||
|
Ping |
||
|
CPU Monitoring |
||
|
Firmware Upgrade |
||
|
Configuration Export/Import |
||
|
Support SNTP Based IPv4 and IPv6 |
||
|
DHCP/BOOTP Client |
||
|
Others |
||
|
Certfication |
CE , FCC , RoHS |
|
|
Package Contents |
Gigabit Switch |
|
|
Power Cord |
||
|
Guide Book/Warranty Card |
||
|
Environment |
Operating Temperature: 0–40 ℃ |
|
